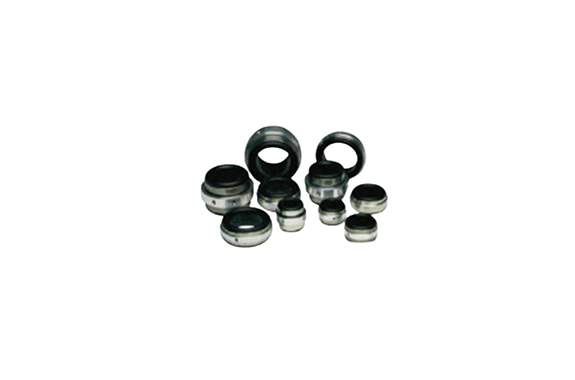

Koganei Rubber Hands Grip Type
Manufacturer: KOGANEI CORPORATION
Features
The hollow doughnut-shaped rubber portion inflates internally. As a result, it gently contacts a wide area. This design ensures a firm grip, holding the workpiece securely without causing damage. Consequently, the system provides both reliable performance and protection for delicate workpieces.
RBG GCA
The workpiece is securely held from the outside, ensuring a gentle but firm grip. This type is ideal for handling workpieces that do not have an opening, or those with a small opening that cannot be easily gripped from the inside. Consequently, it provides a reliable and safe solution for delicate workpieces that require secure handling.
Specifications
| Order code | Applicable inner diameter mm [in.] | Recommended load mass g [oz.] | Media | Max operating air pressure MPa [psi] | Proof pressure MPa [psi] | Operating temperature range °C [°F] | Lubrication | Rubber portion construction | Body material | Product mass g [oz.] |
| RBP006RCA | 8.5–10 [0.335–0.394] | 300 [10.6] | Air | 0.40 [58] | 0.60 [87] | 0–50 [32–122] | Prohibited (No mineral oil) | Radial cords (Chloroprene rubber) | Stainless steel | 8 [0.28] |
| RBP007RCA | 10–12 [0.394–0.472] | 300 [10.6] | Air | 0.40 [58] | 0.60 [87] | 0–50 [32–122] | Prohibited (No mineral oil) | Radial cords (Chloroprene rubber) | Plated steel | 12 [0.42] |
| RBP009RCA | 12–17 [0.472–0.669] | 1300 [45.9] | Air | 0.40 [58] | 0.60 [87] | 0–50 [32–122] | Prohibited (No mineral oil) | Radial cords (Chloroprene rubber) | Plated steel | 17 [0.60] |
| RBP010RCA | 16–21 [0.630–0.827] | 2500 [88.2] | Air | 0.40 [58] | 0.60 [87] | 0–50 [32–122] | Prohibited (No mineral oil) | Radial cords (Chloroprene rubber) | Plated steel | 28 [0.99] |
| RBP017RCA | 24–32 [0.945–1.261] | 3000 [105.8] | Air | 0.50 [73] | 0.75 [109] | 0–50 [32–122] | Prohibited (No mineral oil) | Radial cords (Chloroprene rubber) | Plated steel | 60 [2.12] |
| RBP019RCA | 28–36 [1.102–1.417] | 3500 [123.5] | Air | 0.50 [73] | 0.75 [109] | 0–50 [32–122] | Prohibited (No mineral oil) | Radial cords (Chloroprene rubber) | Plated steel | 85 [3.00] |
| RBP022RCA | 36–50 [1.417–1.969] | 5000 [211.6] | Air | 0.50 [73] | 0.75 [109] | 0–50 [32–122] | Prohibited (No mineral oil) | Radial cords (Chloroprene rubber) | Plated steel | 105 [3.70] |
| RBP025RCA | 50–63 [1.969–2.480] | 7000 [246.9] | Air | 0.50 [73] | 0.75 [109] | 0–50 [32–122] | Prohibited (No mineral oil) | Radial cords (Chloroprene rubber) | Plated steel | 160 [5.64] |
| RBP035TCA | 63–80 [2.480–3.150] | 12000 [423.3] | Air | 0.50 [73] | 0.75 [109] | 0–50 [32–122] | Prohibited (No mineral oil) | Bias cords (Chloroprene rubber) | Aluminum | 245 [8.64] |
| RBP045TCA | 80–100 [3.150–3.937] | 22000 [776.0] | Air | 0.50 [73] | 0.75 [109] | 0–50 [32–122] | Prohibited (No mineral oil) | Bias cords (Chloroprene rubber) | Aluminum | 370 [13.05] |
| RBP055TCA | 100–125 [3.937–4.921] | 28000 [987.7] | Air | 0.50 [73] | 0.75 [109] | 0–50 [32–122] | Prohibited (No mineral oil) | Bias cords (Chloroprene rubber) | Aluminum | 610 [21.52] |
