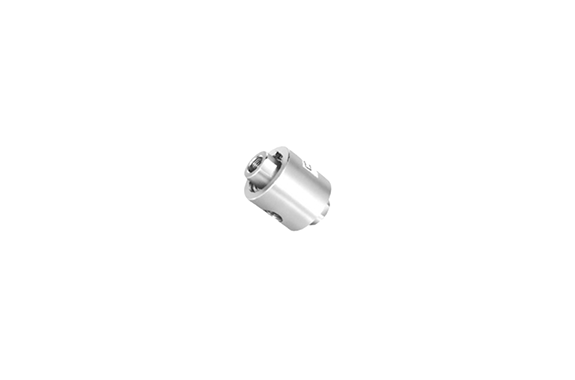

Koganei Shuttle Valve
Manufacturer: KOGANEI CORPORATION
Features
Shuttle valve that allows air flow in one direction when there is air flow from two directions.
Specifications
| Item | S125 | S250 |
|---|---|---|
| Port size | Rc 1/8 | Rc 1/4 |
| Effective area (Cv) | 6.0 [0.30] | 14 [0.72] |
| Media | Air | Air |
| Operating pressure range | MPa [kgf/cm²] [psi]: 0.07 ~ 0.9 [0.7 ~ 9.2] [10 ~ 131] | MPa [kgf/cm²] [psi]: 0.07 ~ 0.9 [0.7 ~ 9.2] [10 ~ 131] |
| Proof pressure | MPa [kgf/cm²] [psi]: 1.35 [13.8] [196] | MPa [kgf/cm²] [psi]: 1.35 [13.8] [196] |
| Operating temperature range | °C [°F]: 0 ~ 60 [32 ~ 140] | °C [°F]: 0 ~ 60 [32 ~ 140] |
| Lubrication | Not required | Not required |
| Mass | g [oz.]: 50 [1.76] | g [oz.]: 160 [5.64] |
