KOGANEI CORPORATION

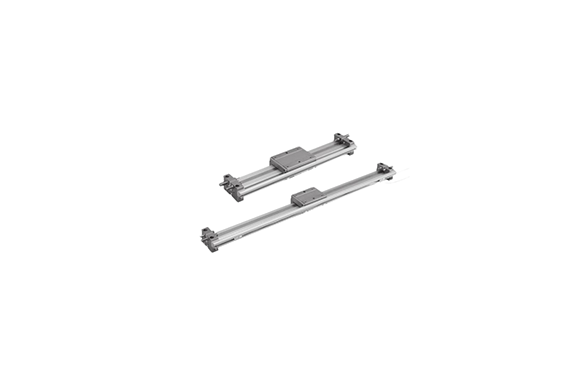

Koganei Slit Type Rodless Cylinder With Integrated Guide ORB Series
Manufacturer: KOGANEI CORPORATION
Features
Built-in guide mechanism
Lightweight, Compact with High-rigidity
Specifications
| Item | Model | ORB10 | ORB16 | ORB20 | ORB25 |
|---|---|---|---|---|---|
| Cylinder bore | mm [in] | 10 [0.394] | 16 [0.630] | 20 [0.787] | 25 [0.984] |
| Medium | Air*1 | ||||
| Operating type | Double acting type | ||||
| Operating pressure range | MPa [psi] | 0.2 to 0.7 [29 to 102] | 0.2 to 0.7 [29 to 102] | 0.2 to 0.8 [29 to 116] | 0.2 to 0.8 [29 to 116] |
| Proof pressure | MPa [psi] | 1.2 [174] | |||
| Operating temperature range | °C [°F] | 0 to 60 [32 to 140]*2 | 0 to 60 [32 to 140]*2 | 0 to 40 [32 to 104]*2 | 0 to 40 [32 to 104]*2 |
| Operating speed range | mm/s [in/sec] | Shock absorber: 30 to 1000 [1.2 to 39.4]*3 Rubber stopper: 30 to 500 [1.2 to 19.7]*3 Metal stopper: 30 to 300 [1.2 to 11.8]*3 | Shock absorber: 50 to 1000 [2.0 to 39.4]*4 Rubber stopper: 30 to 500 [1.2 to 19.7]*4 Metal stopper: 30 to 300 [1.2 to 11.8]*4 | Shock absorber: 50 to 1000 [2.0 to 39.4]*4 Rubber stopper: 30 to 500 [1.2 to 19.7]*4 Metal stopper: 30 to 300 [1.2 to 11.8]*4 | Shock absorber: 50 to 1000 [2.0 to 39.4]*4 Rubber stopper: 30 to 500 [1.2 to 19.7]*4 Metal stopper: 30 to 300 [1.2 to 11.8]*4 |
| Cushion | Shock absorber Rubber stopper Metal stopper | ||||
| Lubrication | Not required*5 | ||||
| Parallelism*6 | mm [in] | 0.1 [0.004] | |||
| Stroke adjustment range | mm [in] | Shock absorber: One side 0 to −5 [0 to −0.197] Rubber stopper: One side 0 to −5 [0 to −0.197] Metal stopper: One side 0 to −6 [0 to −0.236] | Shock absorber: One side 0 to −7 [0 to −0.276] Rubber stopper: One side 0 to −7 [0 to −0.276] Metal stopper: One side 0 to −10 [0 to −0.394] | Shock absorber: One side 0 to −10 [0 to −0.394] Rubber stopper: One side 0 to −10 [0 to −0.394] Metal stopper: One side 0 to −23 [0 to −0.906] | Shock absorber: One side 0 to −10 [0 to −0.394] Rubber stopper: One side 0 to −10 [0 to −0.394] Metal stopper: One side 0 to −21 [0 to −0.827] |
| When touch switch used*7 | mm [in] | One side 0 to −10 [0 to −0.157] | One side 0 to −10 [0 to −0.157] | One side 0 to −10 [0 to −0.157] | One side 0 to −10 [0 to −0.157] |
| Maximum stroke | mm [in] | 500 [19.69] | |||
| Maximum payload*3 | kg [lb] | 4 [8.8] | 9 [19.8] | 14 [30.9] | 16 [35.3] |
| Connection port size | M5×0.8 | M5×0.8 | Rc1/8 | Rc1/8 | |
