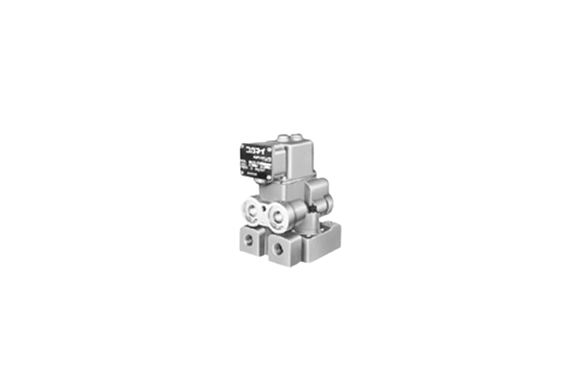

Koganei Solenoid Valve 3-Position 253, 503, 753 Series Round Type
Manufacturer: KOGANEI CORPORATION
Features
The system delivers high reliability, and it is backed by a long track record of proven success. Moreover, the original poppet system works together with the diaphragm and poppet mechanism to create a highly stable sealing structure. As a result, the integrated design virtually eliminates air leaks, and it consistently maintains dependable performance. Additionally, the mechanism reduces failure risk, and it also enhances long-term durability for demanding operating environments. Consequently, users experience smoother operation, greater efficiency, and lower maintenance requirements.
Specifications
| Item | Model | 253-4E2 | 253-4E2-03 | 503-4E2 | 503-4E2-03 | 503-4E2-06 | 753-4E2 | 753-4E2-08 |
|---|---|---|---|---|---|---|---|---|
| Media | Air | |||||||
| Operation type | Internal pilot type | |||||||
| Effective area (Cv) mm² | 15 (0.76) | 50 (2.5) | 100 (5.0) | |||||
| Port size Rc | 1/4 | 3/8 | 1/2 | 3/8 | 3/4 | 1 | ||
| Lubrication | Required (Turbine Oil Class 1 (ISO VG32) or equivalent) | |||||||
| Operating pressure range MPa [kgf/cm²] [psi.] | 0.1～0.9 (1.0～9.2) [15～131] | 0.2～0.9 (2.0～9.2) [29～131] | ||||||
| Proof pressure MPa [kgf/cm²] [psi.] | 1.35 (13.8) [196] | |||||||
| Response time ON/OFF ms | ON | 70 | 140 | |||||
| OFF | 70 | 140 | ||||||
| Maximum operating frequency Hz | 5 | |||||||
| Minimum time to energize for self holding ms | — | |||||||
| Operating temperature range (atmosphere and media) °C [°F] | 0～60 [32～140] | |||||||
| Mounting direction | Any | |||||||
| Mass kg [lb.] | 2.1 [4.6] | 4.3 [9.5] | 8.5 [18.7] | |||||
