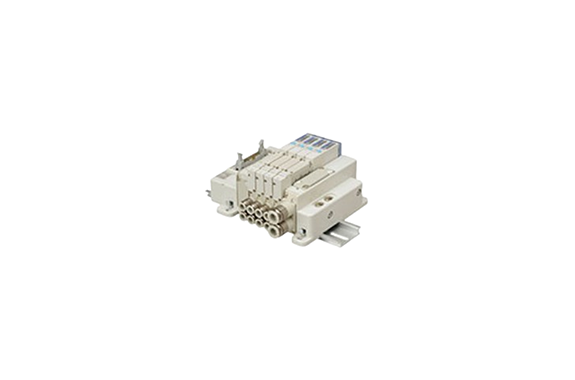

Koganei Solenoid Valve F15 Valve Easy Assembly Type Manifold Plug In Type
Manufacturer: KOGANEI CORPORATION
Features
For cylinder bore sizes ranging from 40 to 80 mm (1.575 to 3.150 in.) and with a 15 mm (0.591 in.) valve width, this system ensures easy addition, removal, and assembly. Furthermore, the internal wiring connects effortlessly by simply linking the manifold bases, enhancing convenience and flexibility.
Specifications
| Basic Model | F15T0 | F15T1 | F15T2 | F15T3 | F15T4 | F15TA | F15TB | F15TC | F15T0G | F15T3G | F15T1G | F15T4G | F15T1V | F15T5G | F15T0V | F15T3V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Media | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | Air | |
| Operation Type | Sonic conductance C dm³/s(bar) | 2.05 | 2.05 | 2.05 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 | 1.60 |
| Effective Area | 10.3 (0.57) | 8 (0.44) | 10.3 (0.57) | 10.3 (0.57) | 8 (0.44) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | 8 (0.44) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | 10.3 (0.57) | |
| Port Size | Dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | M5 x 0.8-32UNF, dual use fitting for φ6 and φ8, Rc1/8, NPT1/8 | |||
| Lubrication | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | Not required | ||
| Operating Pressure Range | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | 0.15～0.7 MPa [22～102 psi.] | |||
| Proof Pressure | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | 1.05 MPa [152 psi.] | |||
| Response Time | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | 12VDC, 24VDC: 20/25 (30) or below | ||||
| Maximum Operating Frequency | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| Minimum Time to Energize for Self Holding | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||
| Shock Resistance | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | 294.2 [30] | |||
| Mounting Direction | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any | Any |
