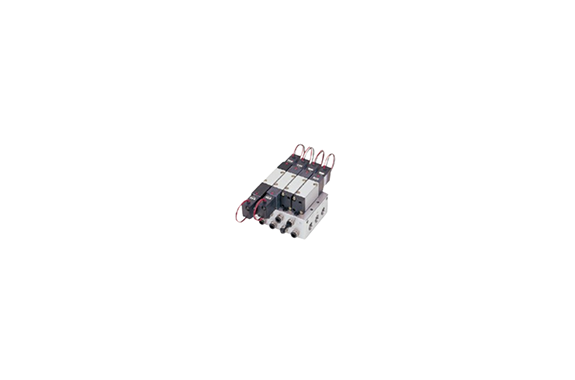

Koganei Solenoid Valves 180 Series

Manufacturer: KOGANEI CORPORATION

Features

This versatile series efficiently handles operation control for cylinders with diameters ranging from 20 mm (0.787 in) to 80 mm (3.150 in). In addition, it serves a wide range of other applications, ensuring flexibility and adaptability across various systems.

Specifications

Item	Basic model
Item	CS-180E1	CS-180-4E1	CS-180-4E2	CS-183-4E2
For direct piping, FE type manifolds	For sub-base piping, A, AJ type manifolds
Number of positions	2 positions	2 positions	3 positions	3 positions
Number of ports	2, 3 ports	5 ports	5 ports	3 ports
Valve function	Normally closed (NC, standard) or Normally open (NO, optional)	Single solenoid or Double solenoid	Closed center (standard), Exhaust center (optional), or Pressure center (optional)	Closed center (standard), Exhaust center (optional), or Pressure center (optional)
Media	Air	Air	Air	Air
Operation type	Internal pilot type	Internal pilot type	Internal pilot type	Internal pilot type
Effective area (Cv)	10.2 [0.57]	9.0 [0.50]	9.0 [0.50]	9.0 [0.50]
Port size	Rc1/8	Rc1/8	Rc1/8	Rc1/8
Lubrication	Not required	Not required	Not required	Not required
Operating pressure range	0.15~0.7 MPa [22~102 psi]	0.15~0.7 MPa [22~102 psi]	0.15~0.7 MPa [22~102 psi]	0.15~0.7 MPa [22~102 psi]
Proof pressure	1.05 [152 psi]	1.05 [152 psi]	1.05 [152 psi]	1.05 [152 psi]
Response time	DC12V, DC24V: 15/25 ms or below, AC100V, AC200V: 15/15 ms or below	15/25 ms or below	15/25 ms or below	15/20 ms or below
ON/OFF	DC12V, DC24V: 15/25 ms or below, AC100V, AC200V: 15/15 ms or below	15/25 ms or below	15/15 ms or below	15/20 ms or below
Maximum operating frequency	5 Hz	5 Hz	5 Hz	5 Hz
Minimum time to energize for self holding	–	–	–	50 ms (CS-180E1)
Operating temperature range (atmosphere and media)	5~50°C [41~122°F]	5~50°C [41~122°F]	5~50°C [41~122°F]	5~50°C [41~122°F]
Shock resistance	1373.0 m/s² [140 G]	1373.0 m/s² [140 G]	1373.0 m/s² [140 G]	1373.0 m/s² [140 G]
Mounting direction	Any	Any	Any	Any
