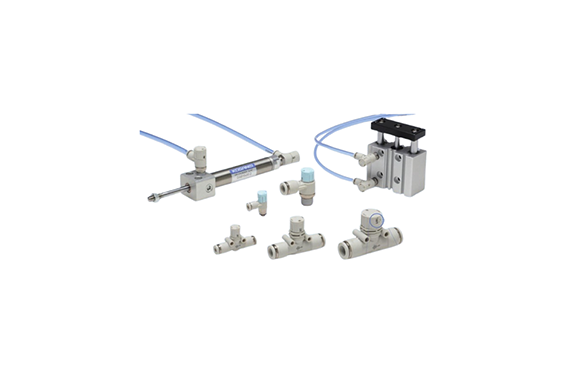

Koganei Speed Controller With Dial Adjuster And Push Lock
Manufacturer: KOGANEI CORPORATION
Features
The flow rate is clearly displayed through the indicator, which is positioned in two areas: the side (upper/lower) and the top. This ensures easy visibility and accurate flow rate monitoring.
Moreover, the rotation count and flow rate adjust with proportional linear characteristics, providing precise control. Additionally, low-flow rate types, equipped with micro-adjustments, are available for even finer regulation.
This compact speed controller is the smallest in its class, saving valuable space without compromising performance. With its dial, users can make quick and precise adjustments.
Furthermore, the push-lock knob simplifies one-handed operation, allowing users to adjust settings effortlessly. This feature enhances usability, ensuring quick, easy operation in any environment.
The knob’s color indicates the control direction, making it easy to identify and adjust as needed. This intuitive design improves control, helping users fine-tune settings effectively and efficiently.
Specifications
| Item | Model | SCD (Elbow type with dial) | SSUD (Union straight type with dial) |
|---|---|---|---|
| Medium | Air (Cannot be used for vacuum) | ||
| Operating pressure range | MPa [psi] | 0.1 to 1.0 MPa [15 to 145 psi] | 0.1 to 1.0 MPa [15 to 145 psi] |
| Reverse valve working pressure | MPa [psi] | 0.05 MPa [7 psi] | 0.05 MPa [7 psi] |
| Operating temperature range | °C [°F] | 0 to 60°C [32 to 140°F] (non-freezing) | 0 to 60°C [32 to 140°F] (non-freezing) |
| Recommended tubes | Nylon or urethane tubes | ||
| Sales unit | 1 pc. | ||
