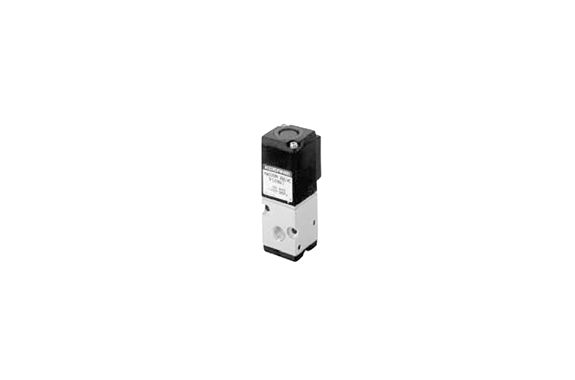

Koganei Square Type Solenoid Valves V100 Series
Manufacturer: KOGANEI CORPORATION
Features
The V030 series offers a space-saving, low-current type designed to handle multiple vacuum pads on a one-to-one basis. It provides a variety of wiring options, and surge-suppression measures are standard for both AC and DC.
Additionally, the V100 and V200 series can be used as NC (normally closed) and NO (normally open) 2- and 3-port valves, offering flexibility in piping ports and flow directions. These valves also demonstrate their true value as selector valves (dual-pressure switching valves) or divider valves.
Furthermore, the 3-port V030, V050, SV100, and SV200 series valves offer excellent reliability, even when used in positive pressure applications. This makes them ideal for vacuum break or releasing workpiece valves.
Moreover, a flywheel diode is standard equipment for AC solenoids (except for V030, optional on the DC24V model). This feature eliminates solenoid burning or humming for smooth, continuous operation.
Specifications
| Item | V100E1 | MV100E1-11 | SV100E1 | MSV100E1-11 |
|---|---|---|---|---|
| Media | Vacuum | Vacuum | Vacuum and air | Vacuum and air |
| Operation type | Direct acting | Direct acting | Direct acting | Direct acting |
| Number of positions | 2 positions | 2 positions | 3 ports | 3 ports |
| Number of ports | 2, 3 ports | 2 positions, 3 ports | 3 ports | 3 ports |
| Valve function | Normally closed (NC) or Normally open (NO) | Normally closed (NC) | Normally closed (NC) | Normally open (NO) |
| Effective area (Cv) | mm² [in²]: 5 [0.28] | mm² [in²]: 5 [0.28] | mm² [in²]: 5 [0.28] | mm² [in²]: 5 [0.28] |
| Port size | Rc1/8 | Rc1/8 | Rc1/8 | Rc1/8 |
| Lubrication | Not required | Not required | Not required | Not required |
| Operating pressure range | kPa [mmHg] [inHg]: -100 ~ 0 [-750.1 ~ 0] [-29.53 ~ 0] | kPa [mmHg] [inHg]: -100 ~ 0 [-750.1 ~ 0] [-29.53 ~ 0] | kPa [mmHg] [inHg]: -100 ~ 0 [-750.1 ~ 0] [-29.53 ~ 0] | kPa [mmHg] [inHg]: -100 ~ 0 [-750.1 ~ 0] [-29.53 ~ 0] |
| Proof pressure | MPa [kgf/cm²] [psi]: – | MPa [kgf/cm²] [psi]: 1.32 [13.5] [191] | MPa [kgf/cm²] [psi]: – | MPa [kgf/cm²] [psi]: 1.32 [13.5] [191] |
| Response time | ms: DC24V | ms: DC24V | ms: DC24V | ms: DC24V |
| ON/OFF | AC100V, AC200V: 20/20 or below | AC100V, AC200V: 20/20 or below | AC100V, AC200V: 25/25 or below | AC100V, AC200V: 30/30 or below |
| Maximum operating frequency | Hz: 5 | Hz: 5 | Hz: 5 | Hz: 5 |
| Operating temperature range | °C [°F]: 0 ~ 50 [32 ~ 122] | °C [°F]: 0 ~ 50 [32 ~ 122] | °C [°F]: 0 ~ 50 [32 ~ 122] | °C [°F]: 0 ~ 50 [32 ~ 122] |
| Shock resistance | Lateral direction: 1373.0 [140.0] (Axial direction: 196.2 [20.0]) | Lateral direction: 1373.0 [140.0] (Axial direction: 196.2 [20.0]) | Lateral direction: 1373.0 [140.0] (Axial direction: 196.2 [20.0]) | Lateral direction: 1373.0 [140.0] (Axial direction: 196.2 [20.0]) |
| Mounting direction | Any | |||
| Mass | g [oz.]: 190 [6.70] | g [oz.]: 190 [6.70] | g [oz.]: 190 [6.70] | g [oz.]: 190 [6.70] |
