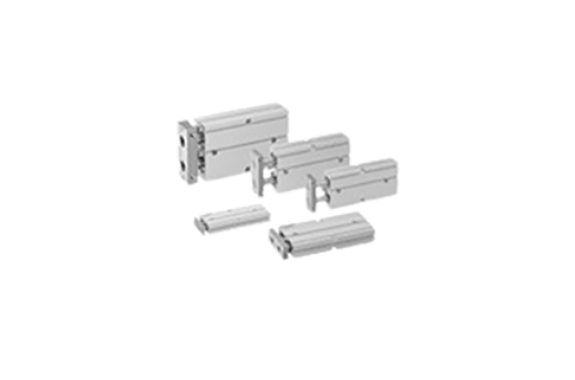

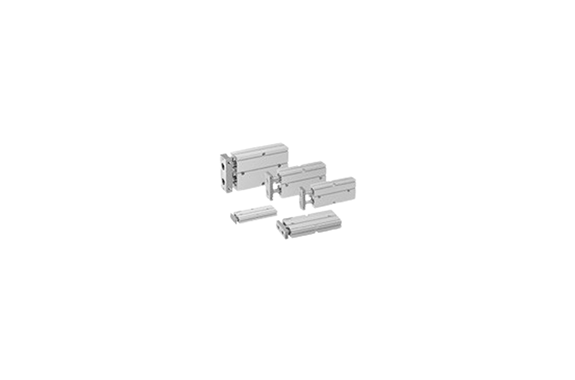

Koganei Twin Rod Cylinders B Series Double Acting Type
Manufacturer: KOGANEI CORPORATION
Features
SQUARE
A slender, square form offering direct mounting, a compact design that eliminates the need for guides, and a sensor switch magnet as standard!
FLAT
This horizontal lead wire type compact sensor switch does not protrude from the body, promoting further space-saving of the mechanical device. In addition, 5 mounting locations on 3 different surfaces facilitate detection of various applications.
POWERFUL
Excellent non-rotating accuracy, while a double piston structure doubles the cylinder’s thrust.
In addition, the Twin Rod cylinder B series helps save space and man-hours, plus it lowers costs.
Specifications
| Item | Bore size mm [in.] | 10 [0.394] | 16 [0.630] | 20 [0.787] | 25 [0.984] | 32 [1.260] |
|---|---|---|---|---|---|---|
| Operation type | Double acting type | |||||
| Media | Air | |||||
| Mounting type | Side mount | |||||
| Operating pressure range MPa [psi.] | 0.15～0.7 [22～102] | 0.1～0.7 [15～102] | ||||
| Proof pressure MPa [psi.] | 1.05 [152] | |||||
| Operating temperature range °C [°F] | 0～60 [32～140] | |||||
| Operating speed range mm/s [in./sec.] | 100～500 [3.9～19.7] | |||||
| Cushion | Rubber bumper | |||||
| Lubrication | Not required (If lubrication is required, use Turbine Oil Class 1 [ISO VG32] or equivalent.) | |||||
| Non-rotating accuracy | ±0.4° | ±0.3° | ||||
| Stroke adjusting range mm [in.] | −5～0 [−0.197～0] (To the specification stroke) | |||||
| Port size | M5×0.8 | Rc1/8 | ||||
