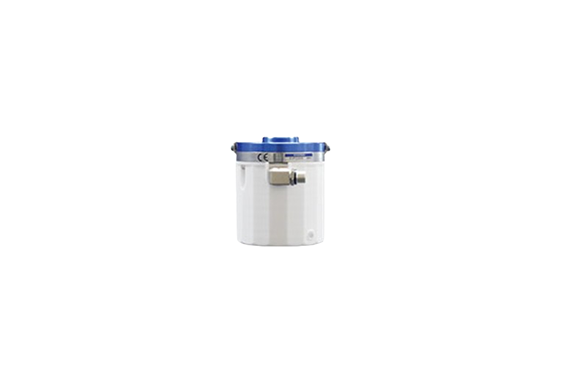

An external air supply is not required, thanks to the built-in pump. Additionally, the air blow function for workpiece release is provided as a standard feature. Furthermore, RS485 communication is included as standard, ensuring seamless integration. A wide variety of pads and robot adapters are available, offering flexibility in selection. It is also possible to install the unit directly onto Koganei’s Electric Auto Hand Changer without the need for a robot adapter. Moreover, the compact size and reduced weight enable easy mounting on small robots, further enhancing versatility and performance.

Specifications

Item	Standard model
Item	EVP03S1	EVP03S2	EVP03S3	EVP03S4	EVP03MJ
Maximum payload	3 [6.615]	3 [6.615]	3 [6.615]	3 [6.615]	3 [6.615]
Motor	Brushed motor	Brushed motor	Brushed motor	Brushed motor	Brushed motor
Power supply voltage	24±10%	24±10%	24±10%	24±10%	24±10%
Power consumption	5 W	5 W	5 W	5 W	5 W
Medium	Air	Air	Air	Air	Air
Achieved vacuum pressure	-60 kPa [-17.724 inHg]	-60 kPa [-17.724 inHg]	-60 kPa [-17.724 inHg]	-60 kPa [-17.724 inHg]	-60 kPa [-17.724 inHg]
Maximum suction flow rate	20 L/min [0.706 SCFM]	20 L/min [0.706 SCFM]	20 L/min [0.706 SCFM]	20 L/min [0.706 SCFM]	20 L/min [0.706 SCFM]
Operating temperature range	-5 to 40 °C [41 to 104 °F]	-5 to 40 °C [41 to 104 °F]	-5 to 40 °C [41 to 104 °F]	-5 to 40 °C [41 to 104 °F]	-5 to 40 °C [41 to 104 °F]
Allowable bending moment	0.9 N·m [7.9676 in-lbf]	0.9 N·m [7.9676 in-lbf]	0.9 N·m [7.9676 in-lbf]	0.9 N·m [7.9676 in-lbf]	0.9 N·m [7.9676 in-lbf]
Allowable torsional moment	1.6 N·m [14.160 in-lbf]	1.6 N·m [14.160 in-lbf]	1.6 N·m [14.160 in-lbf]	1.6 N·m [14.160 in-lbf]	1.6 N·m [14.160 in-lbf]
Withstand voltage	1 minute at 500 VAC	1 minute at 500 VAC	1 minute at 500 VAC	1 minute at 500 VAC	1 minute at 500 VAC
Insulation resistance	At 500 VDC megger, then 100 MΩ or higher	At 500 VDC megger, then 100 MΩ or higher	At 500 VDC megger, then 100 MΩ or higher	At 500 VDC megger, then 100 MΩ or higher	At 500 VDC megger, then 100 MΩ or higher
Shock resistance	392.3 m/s² [G]	392.3 m/s² [G]	392.3 m/s² [G]	392.3 m/s² [G]	392.3 m/s² [G]
Surface material	Housing: PA2000, Top panel and flange mechanical interface: Aluminum	Housing: PA2000, Top panel and flange mechanical interface: Aluminum	Housing: PA2000, Top panel and flange mechanical interface: Aluminum	Housing: PA2000, Top panel and flange mechanical interface: Aluminum	Housing: PA2000, Top panel and flange mechanical interface: Aluminum
Mass (w/o option, not including accessories)	195 g [6.88 oz]	200 g [7.05 oz]	200 g [7.05 oz]	210 g [7.41 oz]	210 g [7.41 oz]
Noise	67 dB	67 dB	67 dB	67 dB	67 dB
IP protection grade	IP20	IP20	IP20	IP20	IP20
Piping	M5 female thread depth 5
Piping size	M5 female thread depth 5
Cable specifications	Heat-resistant, oil-resistant, low-friction insulated plastic sheathed cable
No. of conductors	8 conductors
Wiring size	Conductor: AWG26 (0.15 mm² [0.0002 in²])
Minimum bending radius	40 mm [1.575 in]
Output type	NPN open collector
Applied voltage	24 V Max
Applied current	30 mA Max
Internal voltage drop	0.3 V (at 5 mA)
Output mode	Hysteresis mode
Functions	External output ON, external output OFF
External input	See Table 2 on page ①
Communication standard	RS485
Communication speed	115200 bps
Communication protocol	Modbus-RTU
Address setting	Not required
Daisy-chain connection	Not supported
Functions	External output ON/OFF pressure setting, vacuum retention value setting, achieved vacuum value setting, zero compensation of pressure
