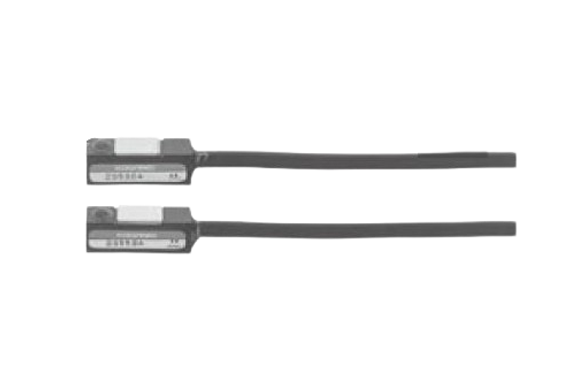

Koganei ZG530 ZG553 With LED Solid State Type Sensor Switch
Manufacturer: KOGANEI CORPORATION
Specifications
| Item | Model | ZG530 | ZG553 |
|---|---|---|---|
| Wiring type | 2-lead wire | ||
| Power supply voltage | DC10~28V | ||
| Load voltage | DC10~28V | ||
| Load current | 4~50mA | ||
| Consumption current | — | ||
| Internal voltage dropNote 1 | 4.5V MAX. (DC24V) | ||
| Leakage current | 1mA MAX. (DC24V at 25°C [77°F]) | ||
| Response time | 1ms MAX. | ||
| Insulation resistance | 100MΩ MIN. (At DC500V Megger, between case and lead wire end) | ||
| Dielectric strength | AC500V (50/60Hz) in 1 minute (Between case and lead wire end) | ||
| Shock resistanceNote 2 | 294.2m/s² [30G] (Non-repeated shock) | ||
| Vibration resistanceNote 2 | 88.3m/s² [9G] (Total amplitude 1.5mm [0.06in.], 10~55Hz) | ||
| Environmental protection | IP67 (IEC standard), JIS C0920 (Water-proof type) | ||
| Operation indicator | When ON: Red LED indicator lights up | ||
| Lead wireNote 3 | ZG530 | PVC 0.2SQ X2-lead X ℓ | |
| Ambient temperature | 0~60°C [32~140°F] | ||
| Storage temperature range | -10~70°C [14~158°F] | ||
| Mass | ZG530 | 20g [0.71oz.] (For lead wire length A: 1000mm) | |
