Kunimoto

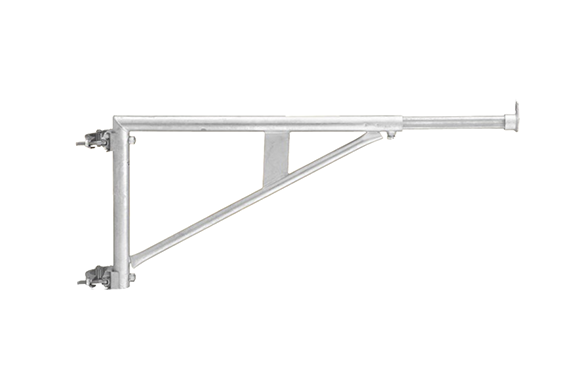

Kunimoto 1026410 KS Telescopic Bracket 1000A Type
Manufacturer: Kunimoto
Model: 1026410
Telescopic support frame that can correspond to any site.
KS Telescopic Bracket PAT.
A telescopic bracket frame that can handle all worksites.

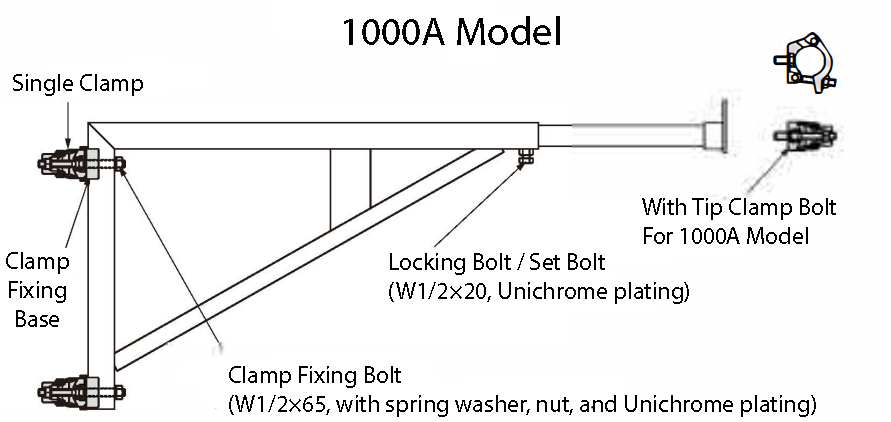

1000A MODEL
Main Body
Hot-dip Galvanizing
Clamp
Highly Corrosion-Resistant Plated Steel Plate
Product Details
| product name | KS Telescopic Bracket 1000A Type |
|---|---|
| Product number | 1026410 |
| Unit mass | 6.6 kg |
■Replacement Parts
Important Notes
- After fitting snugly onto the scaffolding pipe, please securely tighten the clamp to a torque of 29.4-34.3 N·m (300-350 kgf·cm).

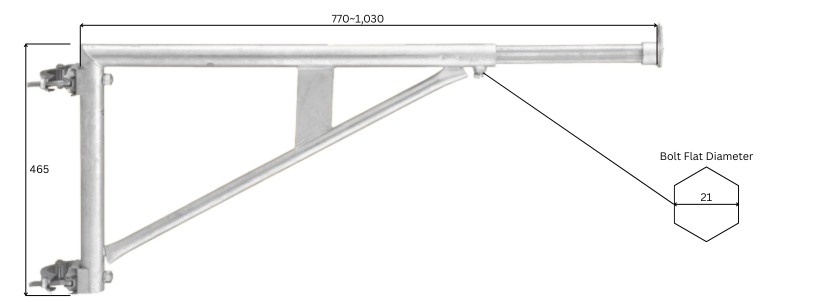

- After adjusting the telescopic length, be sure to tighten the locking bolt and use the product in a fixed state. (Locking bolt tightening torque: 8-10 N·m)
