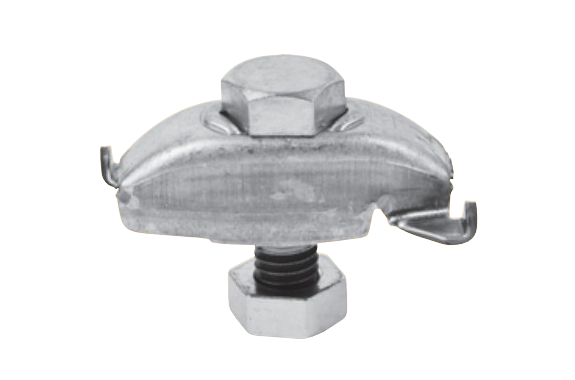

Kunimoto KS Flat Rib (with Bolt) type 75

Manufacturer: Kunimoto

Novelty ,free-of-boring, free-positioning hardware that allows for rationalization of torso and purlin work .

Eliminates drilling in C-section and makes it easier to manage C-section allocation on site.
There is no need for drilling, and the number of bolts to be tightened is halved compared to the conventional method, and an improvement of about 1.7 times in construction efficiency can be achieved.
Workers’ safety can be ensured because C-shaped steel at the rim of the body can be shared with the knocker (cat).
The installation of the prinkles on the ground eliminates the need to carry the mounting bolts and nuts to high places, which improves the workability.
There is a guide at the bottom of the pintle, and when the nut is tightened, it is automatically aligned to fix the core of C-shaped steel.

Position-Free System

KS Pin-cle, KS Noc-cle PAT.

An innovative fitting designed to rationalize work on eaves and roofs, requiring no drilling and allowing for flexible positioning.

Pin-cle

New Method

① Place the C-channel steel on the Noc-cle.	② Turn the Pin-cle to tighten.

Features

Eliminates the need to drill holes in C-channel steel, making it easier to manage C-channel spacing on site.
No drilling is required, and the number of bolts to be tightened is reduced by half compared to conventional methods, improving installation efficiency by approximately 1.7 times.
Workers can work by placing the C-channel steel (Neko) of the eaves/roof on the Noc-cle, ensuring worker safety.
Since the Pin-cle is installed on the ground, there is no need to carry bolts and nuts to high places, which improves workability.
The bottom of the Pin-cle has a guide, which automatically adjusts and secures the core of the C-channel steel when the nut is tightened.
