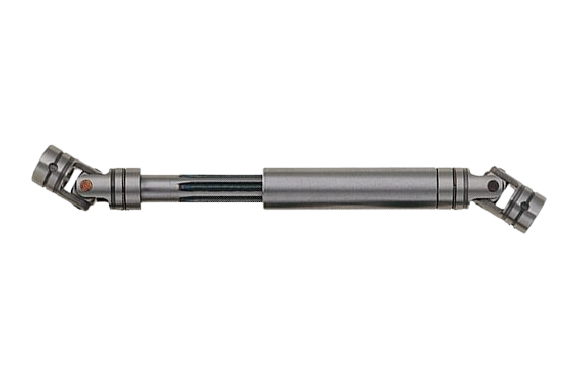

Kyowa Kogyo SP Type High-Precision Spinning Top Standard Type

Manufacturer: Kyowa Kogyo Co., Ltd.
Model: SP Type

Features

The Standard (S) series provides excellent rotational accuracy and transmission capacity while maintaining minimal backlash.
It supports an inner diameter range of 3 to 50 mm and uses original dimension standards.
In addition, it offers a wide variety of standard options, including pin types, keyway types (new JIS and old JIS), and quick-change types, so it can meet diverse application needs.
Its compact design improves usability while maintaining high transmission capacity and functional performance.
The product achieves stable and superior rotational accuracy through a unique grinding process.
All major components use SCM415 material and undergo carburizing and quenching, so they ensure outstanding durability and long service life.
Overall, this spinning top joint balances accuracy, strength, durability, and cost, making it a highly reliable and well-rounded solution.

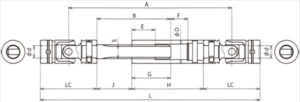

Dimensions	d	L	Telescopic	A	B	Spline Specification S	E	LC	LQ	D	F	G	H	J
Product number	d	L	Telescopic	A	B	Spline Specification S	E	LC	LQ	D	F	G	H	J
SP-08-**A	8	163	+19 -11	127	65	Involute Spline Large Diameter = 10 m = 0.75 z = 11	20	36	—	17	11	39	65	26
SP-08-09A	8	167	+17 -13	129	65	Involute Spline Large Diameter = 10 m = 0.75 z = 11	20	36	38	17	13	37	65	28
SP-08-99A	8	169	+17 -13	129	65	Involute Spline Large Diameter = 10 m = 0.75 z = 11	20	—	38	17	13	37	65	28
SP-10-**A	10	177	+17 -13	135	65	Involute Spline Large Diameter = 12 m = 1.0 z = 10	25	42	42	19	13	37	65	28
SP-12-**A	12	225	+16 -16	173	88	Square Spline 16×13×3.5-6	40	52	52	23	16	56	89	32
SP-14-**A	14	240	+14 -18	181	87	Square Spline 16×13×3.5-6	40	59	59	23	18	54	89	33
SP-16-**A	16	308	+35 -23	234	115	Square Spline 20×16×4-6	40	74	74	30	23	75	120	40
SP-18-**A	18	327	+30 -26	246	115	Square Spline 20×16×4-6	40	81	81	30	26	70	120	45
SP-20-**A	20	344	+33 -27	257	118	Square Spline 22×18×5-6	40	87	87	36	27	73	125	45
SP-22-**A	22	360	+28 -30	266	115	Square Spline 25×21×5-6	40	94	94	40	30	68	125	47
SP-25-**A	25	405	+38 -32	300	133	Square Spline 28×23×6-6	45	105	105	44	32	83	145	50
SP-30-**A	30	464	+35 -40	342	145	Square Spline 32×26×6-6	50	122	122	51	40	85	160	60
SP-35-**A	35	515	+35 -45	375	150	Involute Spline 35×19×1.667	50	140	—	55	45	85	170	65
SP-40-**A	40	574	+35 -50	417	165	Involute Spline 40×22×1.667	60	157	—	65	50	95	190	70
SP-45-**A	45	637	+35 -55	461	180	Involute Spline 45×25×1.667	70	176	—	75	55	105	210	75
SP-50-**A	50	697	+35 -60	506	200	Involute Spline 50×28×1.667	80	191	—	83	60	115	230	85
