Japan, LOBTEX
LOBTEX DS-L STLOCK Long Socket
Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: DS-L : DS17L, DS19L, DS21L

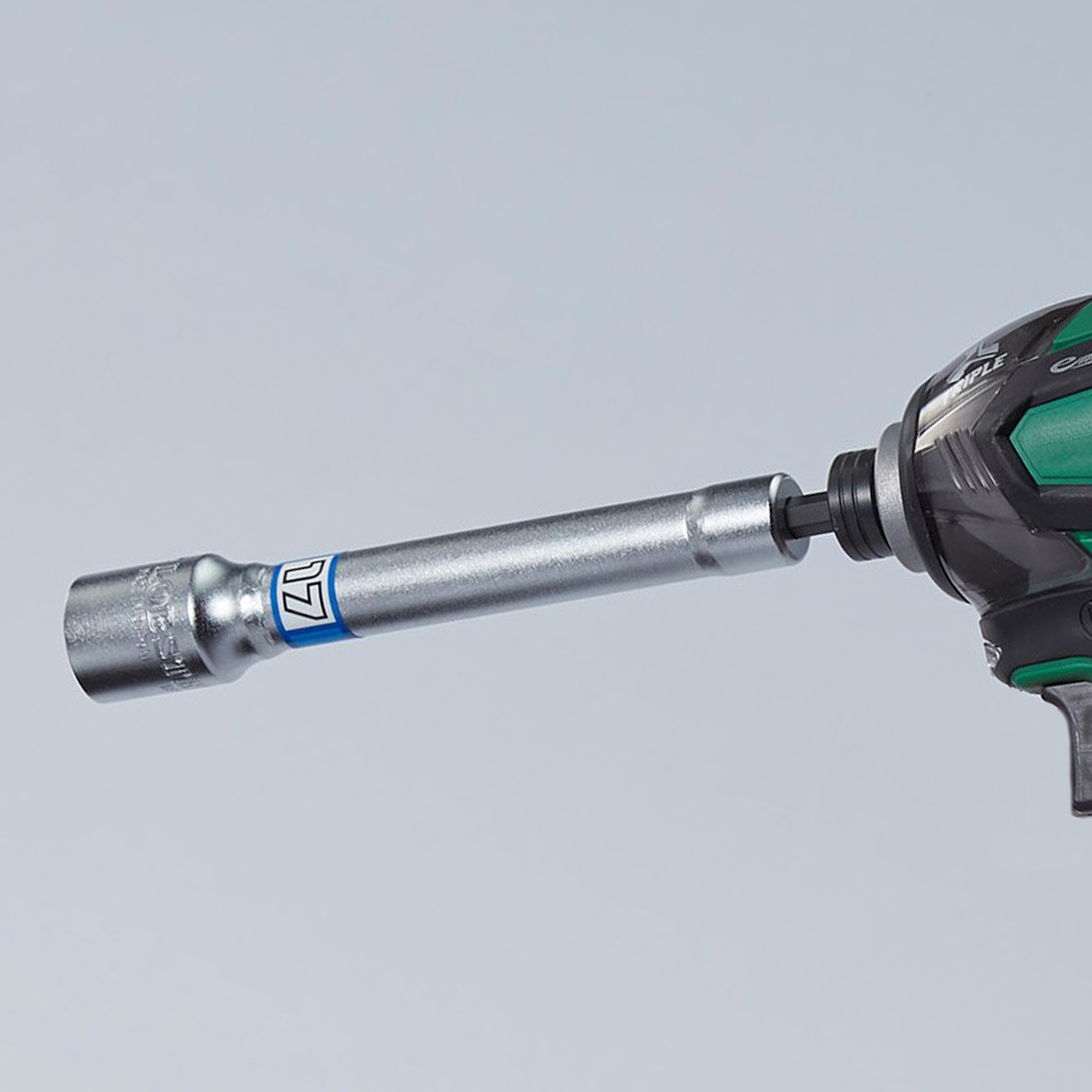

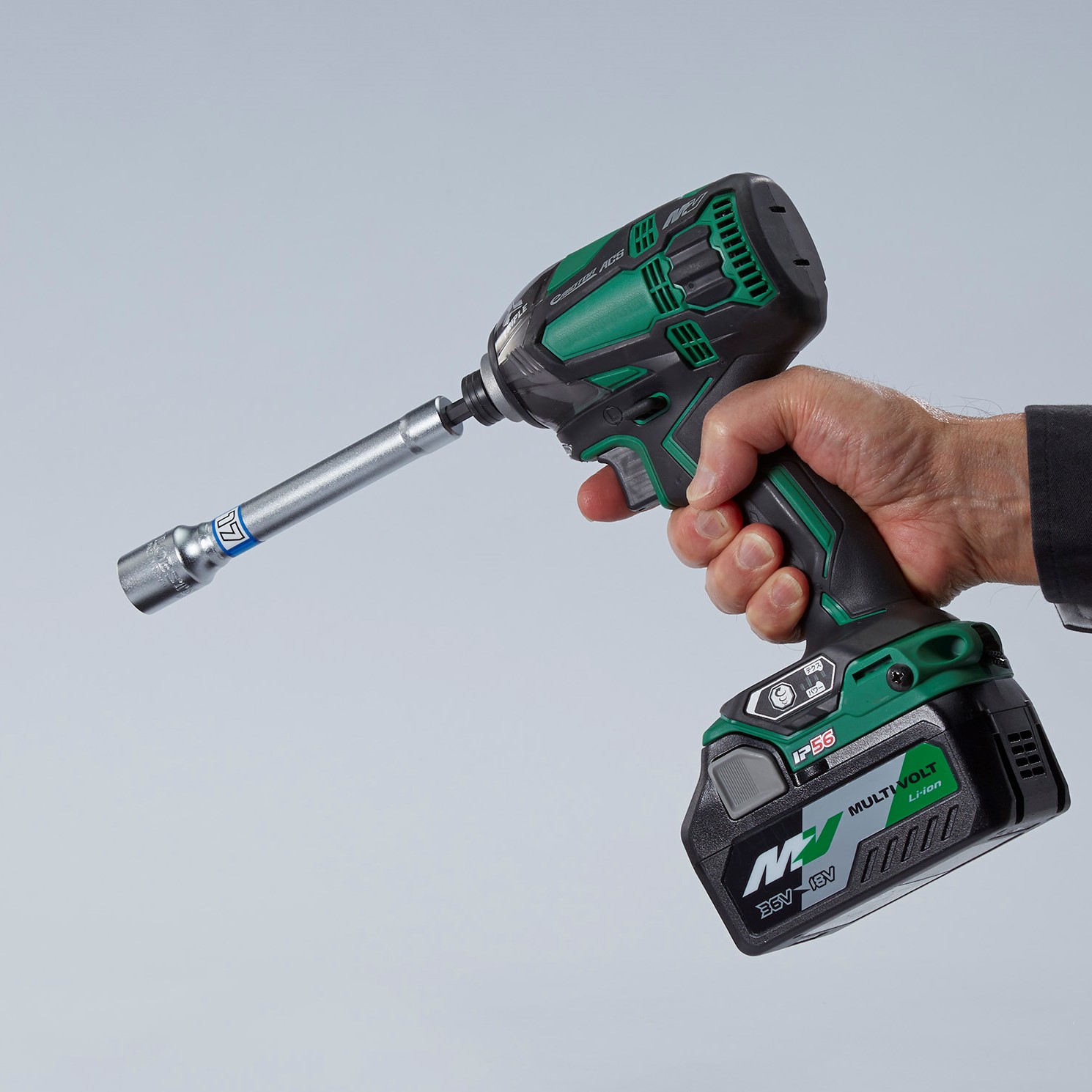

Compatible with 18 V impact screwdriver
Long socket
Compatible models：18V impact screwdriver.
Enables work in recessed and elevated positions.
Deep hole type, applicable to long protruding male threads.
The lightweight type reduces worker load, enabling work efficiency improvement.
Features
●Point
●Opening shape
Specifications

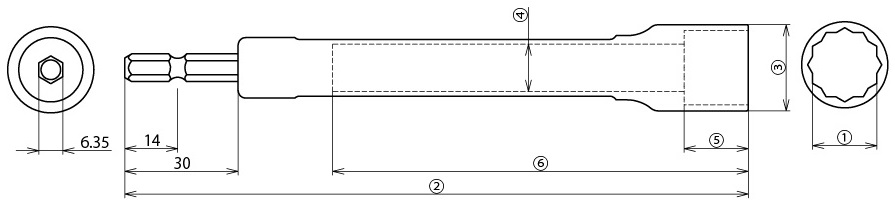

| Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | size6 | Retail/User prices | Remark |
|---|---|---|---|---|---|---|---|---|---|
| DS17L | 105g | 17mm | 165mm | 22.8mm | 12.5mm | 17mm | 110mm | open price | opening shape：dodecagon |
| DS19L | 135g | 19mm | 165mm | 24.8mm | 16mm | 17mm | 110mm | open price | opening shape：dodecagon |
| DS21L | 142g | 21mm | 165mm | 27.3mm | 16mm | 17mm | 110mm | open price | opening shape：dodecagon |
CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
