Japan, LOBTEX
LOBTEX DSX-SF STLOCK Standard Socket (High Durability Type)

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: DSX-SF : DSX17SF, DSX19SF, DSX21SF
High durability and compatibility with 36 V impact screwdriver.
Standard socket (High durability type)

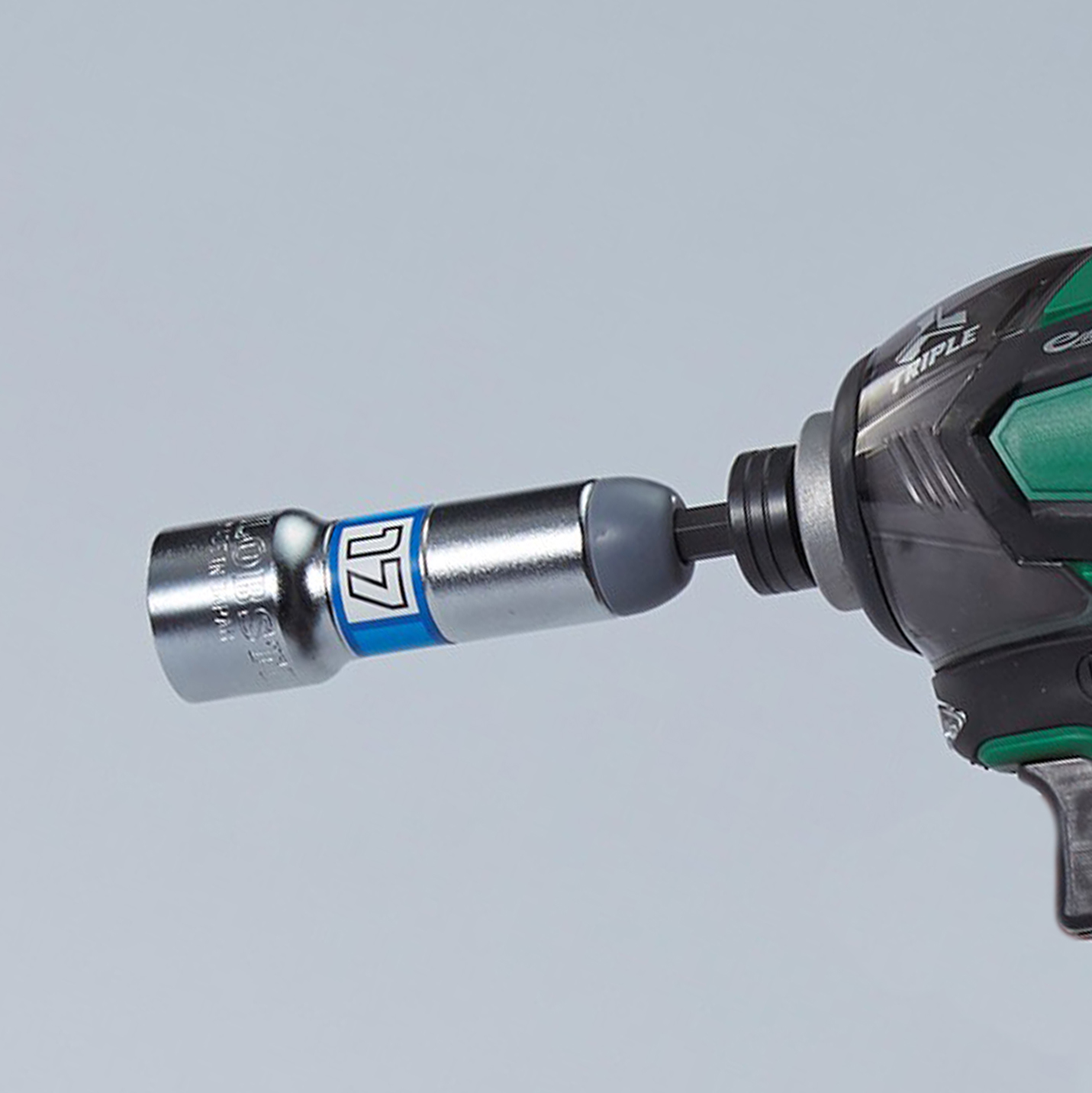

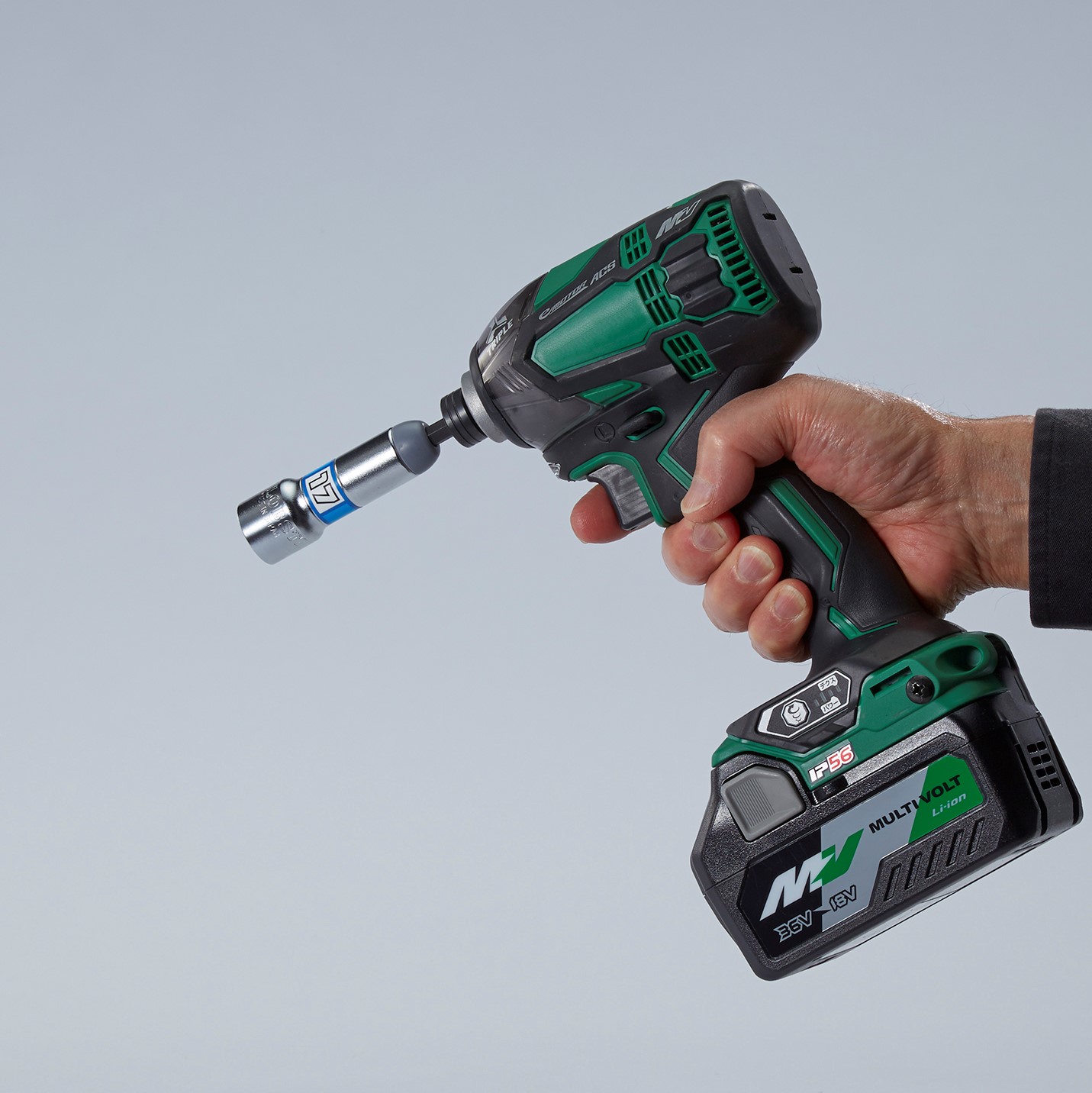

Compatible models:18V・36V・40Vmax Impact screwdriver.
Provides long service life due to torsion effect of the long shaft.
Torsion/Break resistance and high torque transmission efficiency are obtained when the hexagon shaft is press-fit into the hexagon hole of the socket.
The lightweight type reduces worker load, enabling work efficiency improvement.
Deep hole type, applicable to long protruding male threads.
Features
●Point
●Opening shape

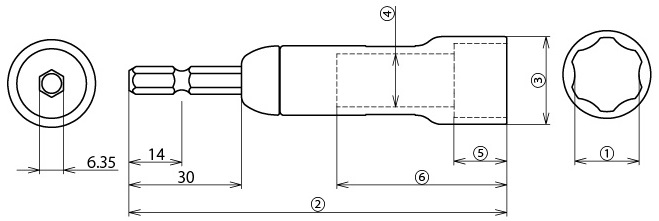

Specifications
Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | size6 | Retail/User prices | Remark |
---|---|---|---|---|---|---|---|---|---|
DSX17SF | 91g | 17mm | 100mm | 23.2mm | 14mm | 14mm | 45mm | open price | opening shape:surface |
DSX19SF | 101g | 19mm | 100mm | 25.2mm | 16mm | 14mm | 45mm | open price | opening shape:surface |
DSX21SF | 115g | 21mm | 100mm | 27.7mm | 18mm | 14mm | 45mm | open price | opening shape:surface |
CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
