LOBTEX DSX STLOCK Standard Socket(High Durability Type)

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: DSX : DSX17, DSX19, DSX21

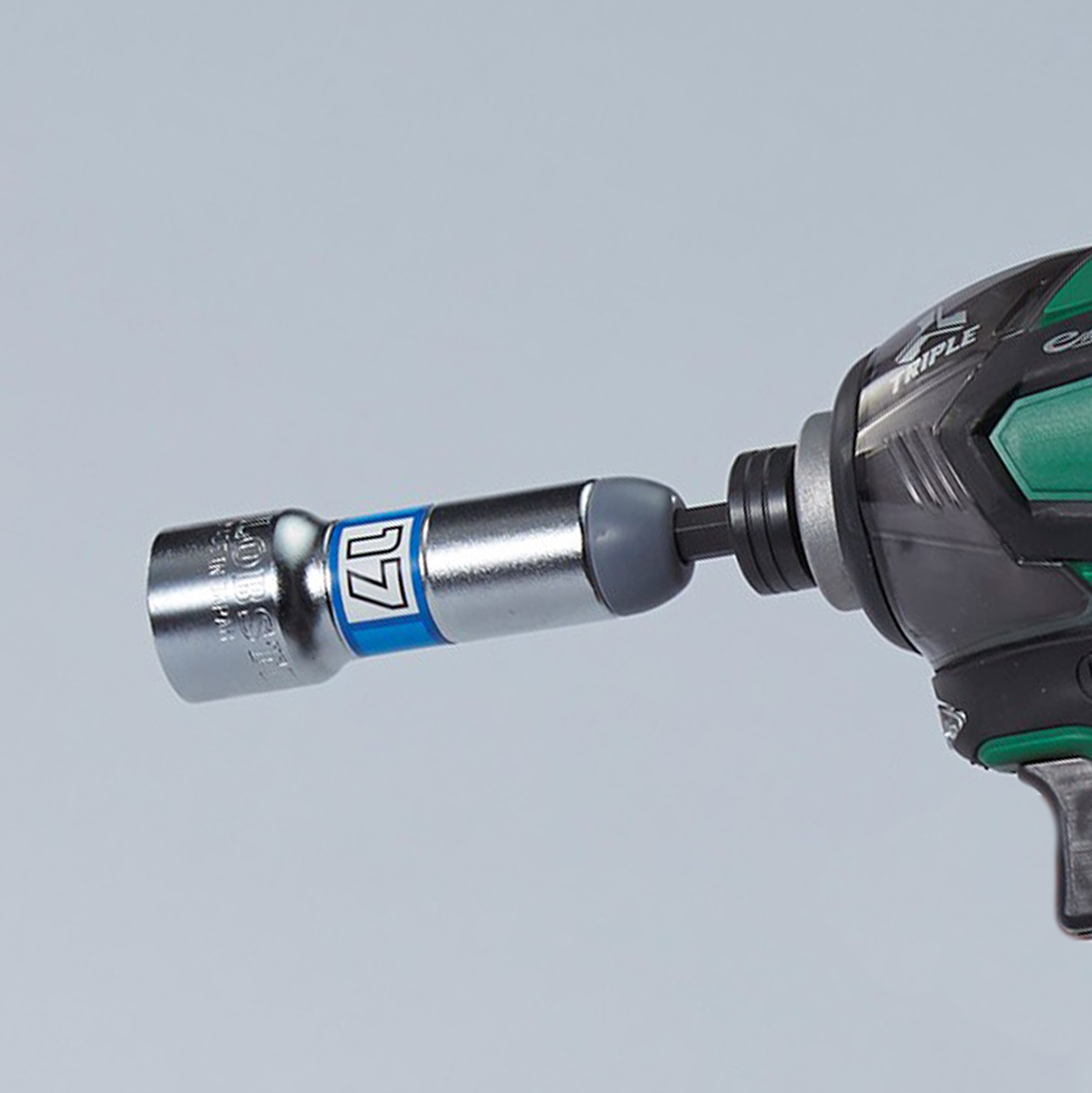

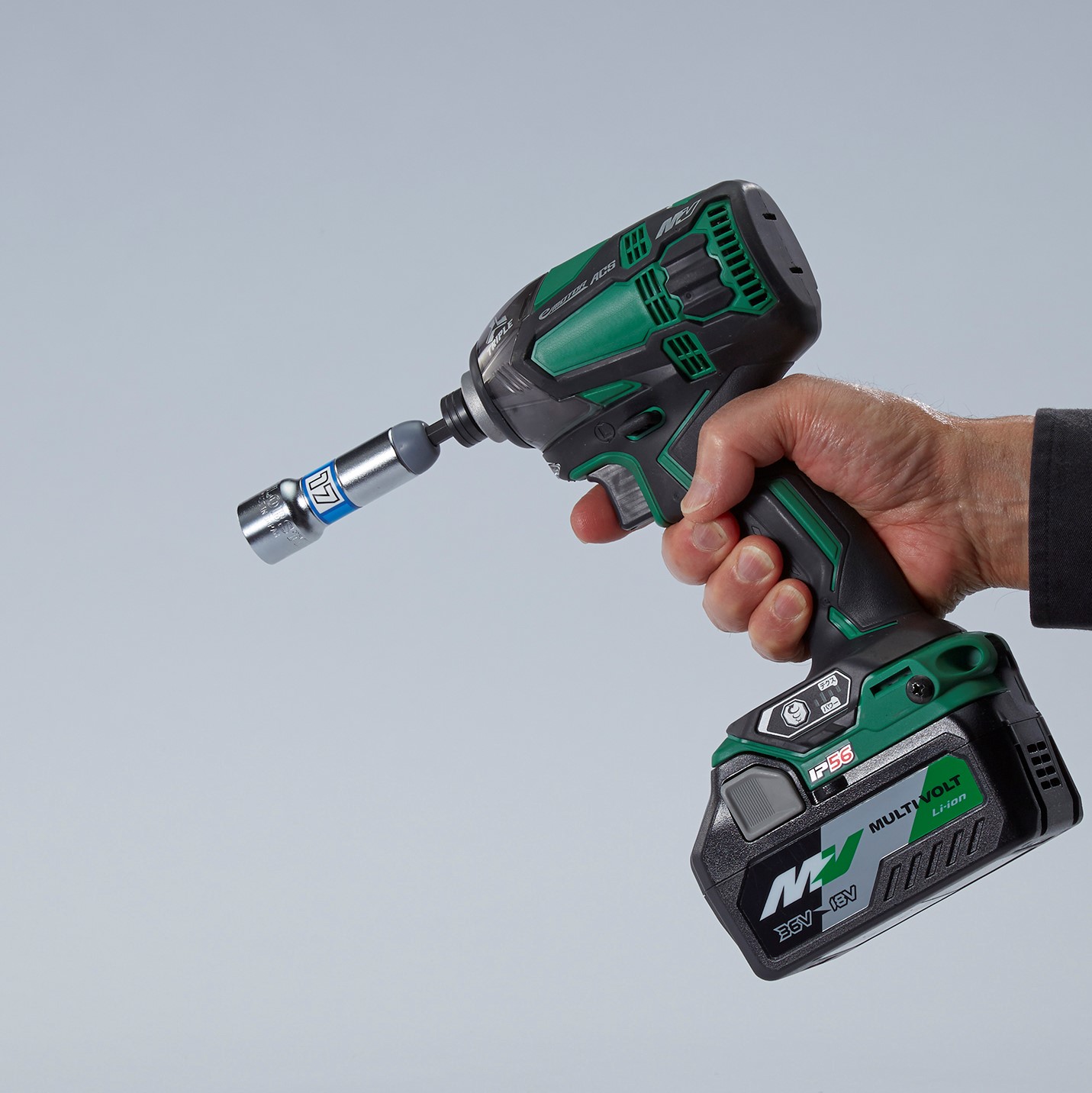

High durability and compatibility with 36 V impact screwdriver.
Standard socket (High durability type)

Compatible models:18V・36V・40Vmax Impact screwdriver.
Provides long service life due to torsion effect of the long shaft.
Torsion/Break resistance and high torque transmission efficiency are obtained when the hexagon shaft is press-fit into the hexagon hole of the socket.
The lightweight type reduces worker load, enabling work efficiency improvement.
Deep hole type, applicable to long protruding male threads.

Features

●Point

●Opening shape

Specifications

STLOCK standard socket(High durability type) DSX

Model No.(Product) weightsize1size2size3size4size5size6Retail/User pricesRemark
DSX1790g17mm100mm23.2mm14mm14mm45mmopen priceopening shape:dodecagon
DSX19100g19mm100mm25.2mm16mm14mm45mmopen priceopening shape:dodecagon
DSX21113g21mm100mm27.7mm18mm14mm45mmopen priceopening shape:dodecagon

Fitting Fitting

!CAUTIONS ON INSCRIBED VALUES

Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
