Japan, LOBTEX
LOBTEX DSZN STLOCK Socket For Full-thread

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: DSZN : DSZN10, DSZN79, DSZN95, DSZN127

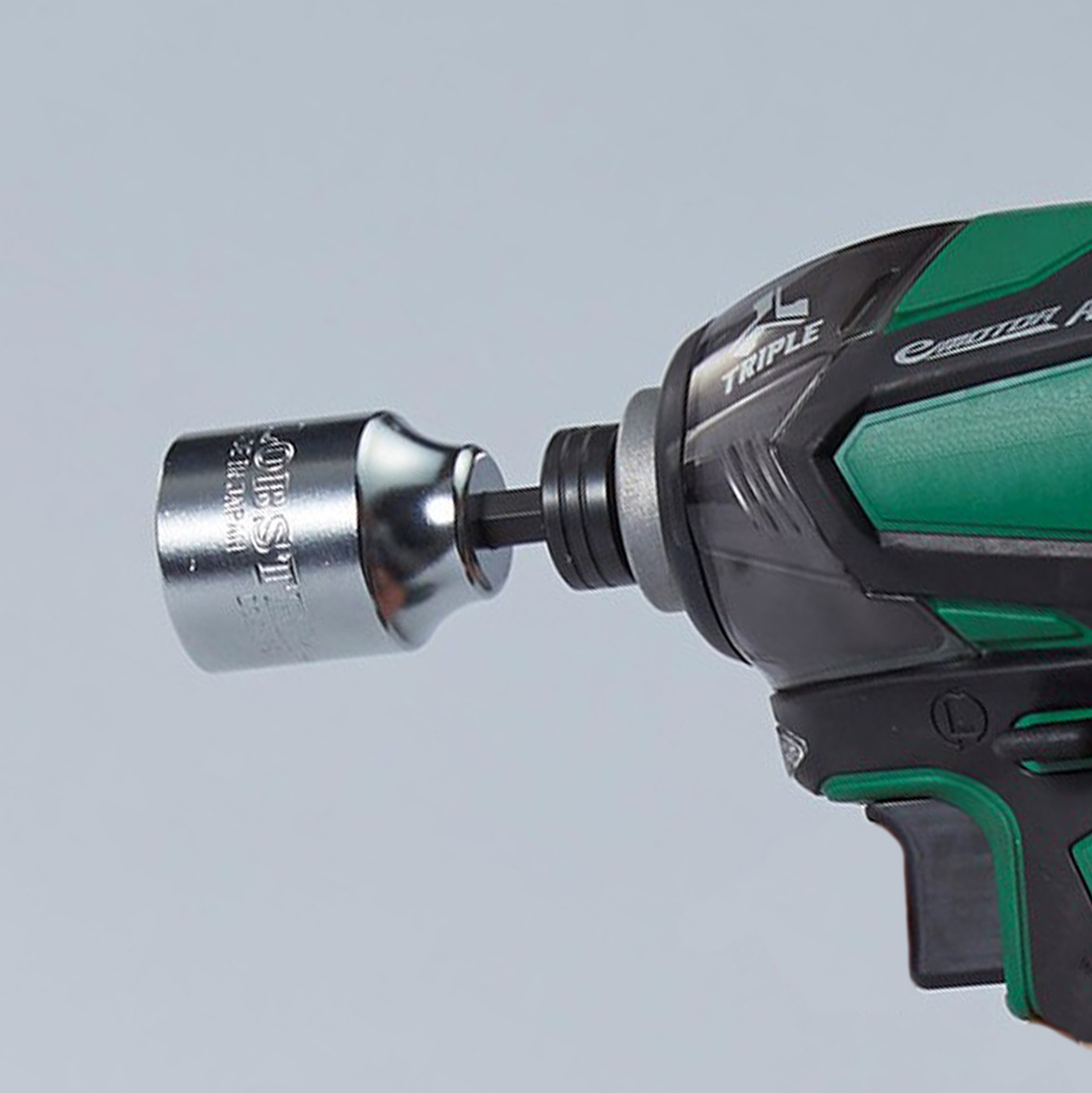

Compatible with 18 V impact screwdriver
Socket for full-thread
・Compatible models:18V impact screwdriver.
・The roller automatically catches threads, enabling quick fitting. Reverse rotation is enabled.
・Applicable for fitting and removing form ties and P-cones.
・Torsion/Break resistance and high torque transmission efficiency are obtained when the hexagon shaft is press-fit into the hexagon hole of the socket.
Features
●Point

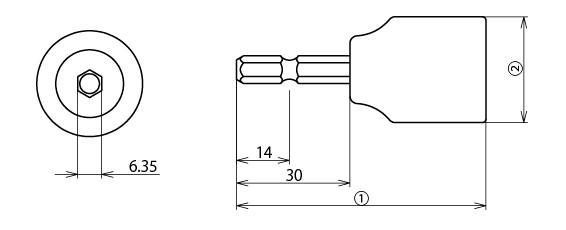

Specifications
| Model No. | (Product) weight | size1 | size2 | Applicable screw | Retail/User prices |
|---|---|---|---|---|---|
| DSZN10 | 119g | 66mm | 28mm | 10mm | open price |
| DSZN79 | 84g | 66mm | 22.8mm | 7.9mm(5/16in) | open price |
| DSZN95 | 120g | 66mm | 28mm | 9.5mm(3/8in) | open price |
| DSZN127 | 111g | 66mm | 28mm | 12.7mm(1/2in) | open price |

CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
