Japan, LOBTEX
LOBTEX LM Socket Square Recess
Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: LM : LM308, LM310, LM311, LM312, LM313, LM314, LM315, LM316, LM317, LM318, LM319, LM320, LM322
This tool set has a wide variation of frequently used socket wrenches. (Drive: 6.35 mm (1/4”) to 12.7 mm (1/2”))
・The wrenches can be selected according to user needs (place of use, work conditions, etc.).
・The socket has been precision-finished to avoid thread deformation.
Use/Application
Tightening and loosening nuts and bolts
Specifications

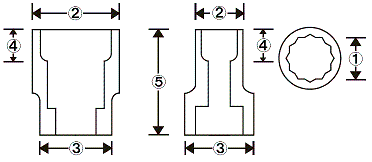

| Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | Retail/User prices | Remark |
|---|---|---|---|---|---|---|---|---|
| LM308 | 20g | 8.0mm | 11.7mm | 17.0mm | 6.0mm | 26.0mm | open price | 9.5（3/8″）、12sq |
| LM310 | 25g | 10.0mm | 14.7mm | 17.0mm | 7.0mm | 26.0mm | open price | 9.5（3/8″）、12sq |
| LM311 | 30g | 11.0mm | 15.7mm | 17.0mm | 8.0mm | 26.0mm | open price | 9.5（3/8″）、12sq |
| LM312 | 30g | 12.0mm | 17.0mm | 18.0mm | 8.0mm | 26.0mm | open price | 9.5（3/8″）、12sq |
| LM313 | 35g | 13.0mm | 18.5mm | 18.0mm | 9.0mm | 27.0mm | open price | 9.5（3/8″）、12sq |
| LM314 | 40g | 14.0mm | 19.5mm | 18.0mm | 9.0mm | 27.0mm | open price | 9.5（3/8″）、12sq |
| LM315 | 50g | 15.0mm | 21.0mm | 18.0mm | 10.0mm | 29.0mm | open price | 9.5（3/8″）、12sq |
| LM316 | 50g | 16.0mm | 22.0mm | 19.0mm | 10.0mm | 29.0mm | open price | 9.5（3/8″）、12sq |
| LM317 | 55g | 17.0mm | 23.0mm | 19.0mm | 11.0mm | 30.0mm | open price | 9.5（3/8″）、12sq |
| LM318 | 60g | 18.0mm | 24.5mm | 21.0mm | 12.0mm | 32.0mm | open price | 9.5（3/8″）、12sq |
| LM319 | 70g | 19.0mm | 26.0mm | 21.0mm | 13.0mm | 32.0mm | open price | 9.5（3/8″）、12sq |
| LM320 | 75g | 20.0mm | 27.0mm | 22.0mm | 13.0mm | 32.0mm | open price | 9.5（3/8″）、12sq |
| LM321 | 75g | 21.0mm | 28.0mm | 22.5mm | 13.0mm | 32.0mm | open price | 9.5（3/8″）、12sq |
| LM322 | 95g | 22.0mm | 30.0mm | 23.5mm | 14.0mm | 33.0mm | open price | 9.5（3/8″）、12sq |
IMPORTANT SAFETY INSTRUCTIONS
Utilize this product only with the appropriate nut or bolt size.
Avoid extending it with pipes or similar items.
Insert nuts and bolts completely to the end.
Ensure the square drive is fully inserted to the base.
Refrain from using this product as a hammer.
Avoid impacting this product with a hammer or similar tools.
Do not combine this product with power tools like impact wrenches.
CAUTIONS ON INSCRIBED VALUES
Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.
