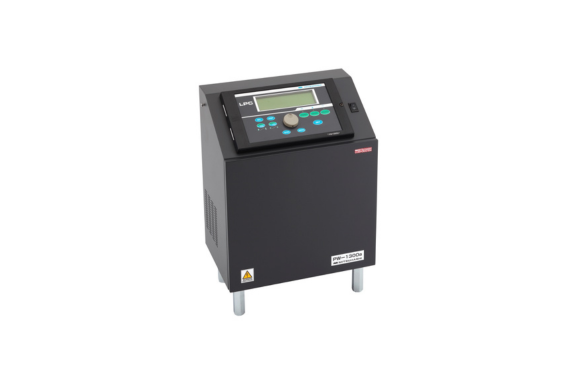

MITSUHASHI PW-1310 Control Panel
Manufacturer: MITSUHASHI CORPORATION
Model: PW-1310
This is a control panel for web meandering control. It can connect to large drive units such as the PD-900 actuator and CM-402F motor. All Q-series detectors can also be connected.

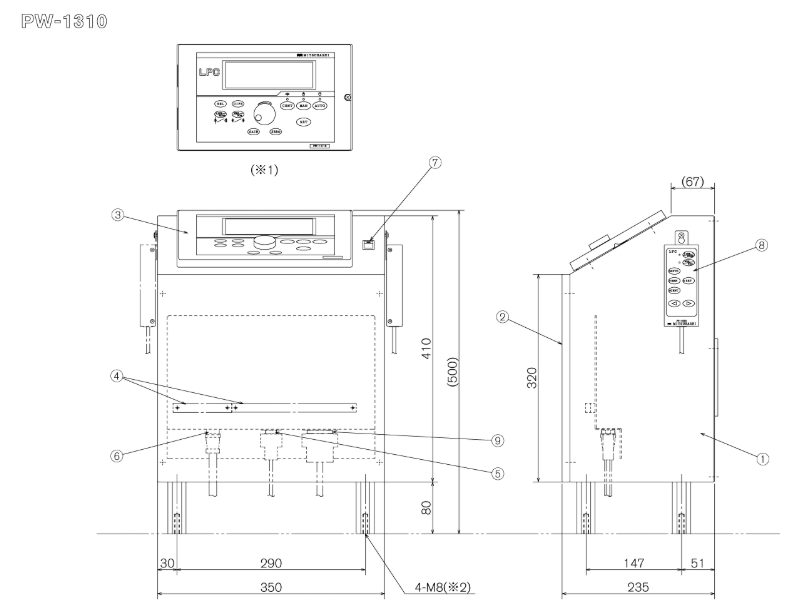

Drawing
① Main unit
② Front cover
③ Control panel
④ External connection terminal board
⑤ Remote box connection connector
⑥ Detector connection connector
⑦ Power switch
⑧ PT-1000 remote box (sold separately)
⑨ EXT connector (optional)
*1: Mounting hole (depth 30) *2: Control panel surface
Features
- Compatible with our standard detectors
This is applicable to our standard detectors. - Prepare 3 bank memory
We have provided three bank memories for various settings. Each bank stores settings such as gain and zero settings, allowing you to recall the optimal settings for different web types by switching between banks. - Equipped with a large LCD display (8 lines x 40 characters)
The operating status can be easily understood at a glance.
Furthermore, settings can be easily configured to accommodate a variety of usage methods.
Standard specifications
| power supply | Single-phase AC 200V |
|---|---|
| Power consumption | Max 600VA |
| mass | Approximately 25kg |
| Usage environment | Ambient temperature 0-40°C (non-condensing), humidity 80%RH or less. |
Feature Overview
| Detection input | 1 system |
|---|---|
| Adaptive detector | PS-261, PS-270, PS-1100, PS-300, PS-350, PS-400, PS-45, PS-450, PS-711, PS-800 |
| Adaptive driver | PD-811, PD-850, PD-900 |
| Memory configuration | System memory: 1 Bank memory: 3 banks Detector input channel, EDGE/LINE, POS/NEG, zero, gain, integral time, dead band width, dead band gain |
| External control input | – |
| External control output | – |
| option | Remote box: PT-1000 (sold separately) Comparator: Factory option |
