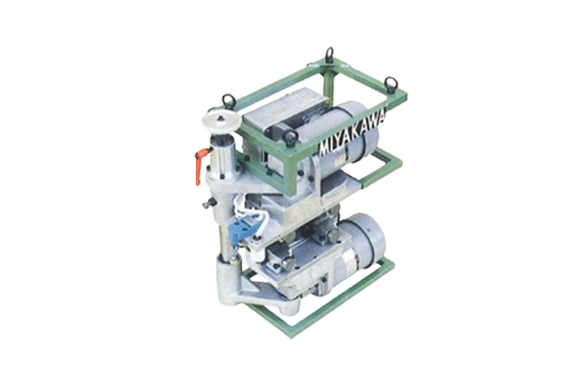

Miyakawa MWA-3R Self-Propelled Both Side Surface Chamfering Machine
Product Made in Japan
Manufacturer: MIYAKAWA
Model: MWA-3R
Features

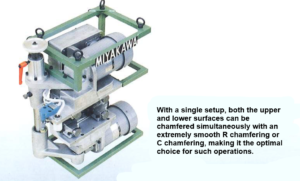

- In one attachment, the upper, lower simultaneous both Ideal for making very smooth R-chamfered or C-chamfered to.
- It uses a dedicated carbide cutting tool with carbide R tip than the conventional machining method, so a uniform, extremely smooth finished surface can be obtained.
- By adopting exclusive carbide R chips, chip exchange can be done easily.
- It can be attached easily to the straight part of the steel plate. Automatic traveling processing is performed to the material rear end or stopper with one setup.
- Self-propelled type is particularly effective for R-chamfering of long workpieces.
Specifications
| Specification | specification |
|---|---|
| Types of chamfering | R face – R1, R2 |
| C-plane – C1, C2 | |
| Processed plate thickness | min 9 mm – max 50 mm |
| Working plate width | 200 mm or more (rib height 80 mm or more) |
| Used cutter | Three blades (one for right rotation and one for left rotation) |
| Used chip | Exclusive carbide R tip (stock stock) |
| Rotation speed | 2000/2400 min-1 50/60 Hz |
| Cutting speed | 1275/1300 mm / min 50/60 Hz |
| Power capacity | 200 V (3 phases). 1.6 kvA |
| Machine size | 490 x 240 x 490 mm |
| Machine weight | 39.5 kg |
Note 1: For processing other than R3, special cutters and chips are required.
