Mizumoto Machine Mfg. Co.

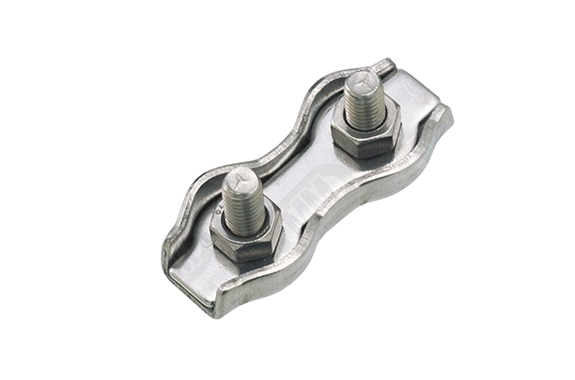

Mizumoto DWC Series Double Wire Clip
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: DWC Series
Features
- Wire can be processed on-site. For terminal processing of wire ropes.
Specifications
| Part No. | L | W | P | Thread Size | Applicable Rope Diameter | Weight (g) |
| DWC-2 | 30 | 11 | 15 | M-4 | 1.5 | 9 |
| DWC-3 | 34 | 15 | 17 | M-4 | 2 | 11 |
| DWC-4 | 40 | 17 | 20 | M-5 | 3 | 22 |
| DWC-5 | 50 | 20 | 25 | M-5 | 4 | 27 |
| DWC-6 | 60 | 24 | 30 | M-6 | 5 | 54 |

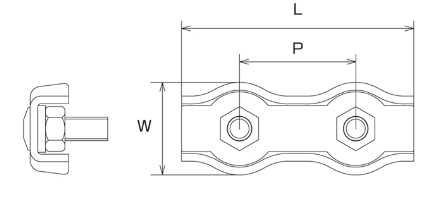

Dimensions (mm)
