Mizumoto Machine Mfg. Co.

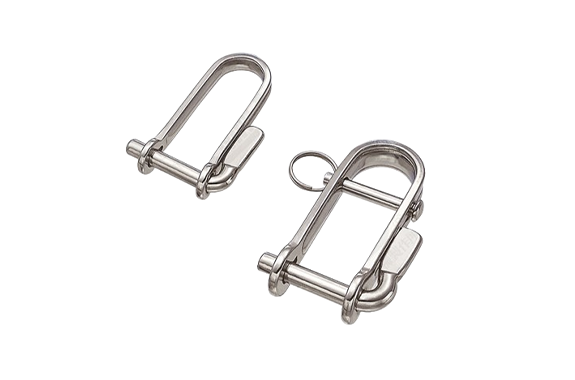

Mizumoto LS Series Lever Pin Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: LS Series
Features
- This is a type that does not fall out of the pin.
- It is very easy to just tilt the lever of the pin 90 degrees.
- It is used for connecting metal fittings such as chains, wires, and ropes, as well as for joints of terminal metal fittings.
Specifications
| Product Number | D1 | D2 | L1 | L2 | B | d | T | F | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| LS-3 | 3 | – | 15 | – | 10 | 6 | 2.5 | 4 | 5 | 20 | 0.20 |
| LS-5 | 5 | – | 40 | – | 13 | 10.5 | 2.5 | 6 | 20 | 90 | 0.88 |
| LS-6 | 6 | 4 | 49 | 32 | 18 | 15 | 3 | 10 | 44 | 120 | 1.18 |

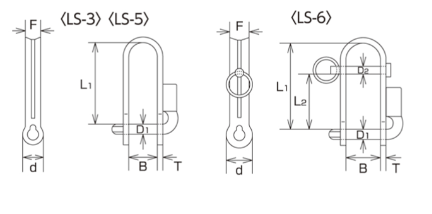

Dimensions (mm)
