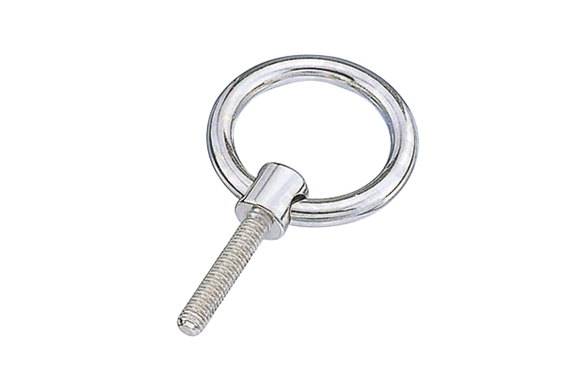

Mizumoto LBT Series Ring Bolt With Collar
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: LBT Series
Features
- When not in use, the circular link will fall over, so it will not get in the way.
- It has a beautiful finish that looks great in interior decoration and is beautifully finished during construction.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
Specifications
Inch Thread
| Item Number | D | L | H | A | B | Thread | Weight (g) | Reference Weight (kgf) | Reference Weight (kN) |
|---|---|---|---|---|---|---|---|---|---|
| LBT-6W13 | 5 | 35 | 13 | 10 | 10 | W-1/4 | 25 | 50 | 0.49 |
| LBT-6W30 | 6 | 40 | 30 | 12 | 12 | W-1/4 | 44 | 50 | 0.49 |
| LBT-8W15 | 7 | 45 | 15 | 14 | 14 | W-5/16 | 63 | 80 | 0.78 |
| LBT-8W40 | 8 | 50 | 45 | 16 | 16 | W-5/16 | 92 | 80 | 0.78 |
| LBT-10W18 | 9 | 50 | 50 | 18 | 18 | W-3/8 | 114 | 150 | 1.47 |
| LBT-10W45 | 10 | 50 | 45 | 20 | 20 | W-3/8 | 156 | 150 | 1.47 |
| LBT-12W22 | 11 | 60 | 22 | 22 | 22 | W-1/2 | 225 | 220 | 2.16 |
Metric Thread
| Item Number | D | L | H | A | B | Thread | Weight (g) | Reference Weight (kgf) | Reference Weight (kN) |
|---|---|---|---|---|---|---|---|---|---|
| LBT-6M25 | 5 | 35 | 25 | 10 | 10 | M-6 | 27 | 50 | 0.49 |
| LBT-6M30 | 6 | 40 | 30 | 12 | 12 | M-6 | 43 | 50 | 0.49 |
| LBT-8M35 | 7 | 45 | 35 | 14 | 14 | M-8 | 72 | 80 | 0.78 |
| LBT-8M40 | 8 | 45 | 40 | 16 | 16 | M-8 | 94 | 80 | 0.78 |
| LBT-10M18 | 9 | 50 | 45 | 18 | 16 | M-10 | 115 | 150 | 1.47 |
| LBT-10M45 | 10 | 50 | 45 | 19 | 19 | M-10 | 163 | 150 | 1.47 |

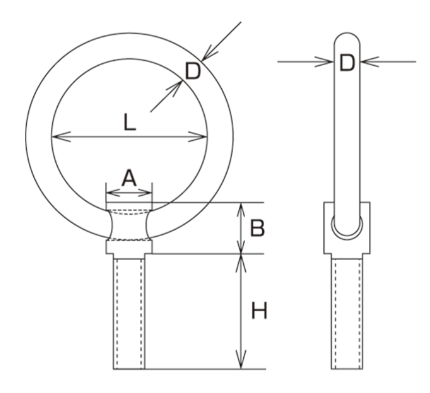

Dimensions (mm)
