Mizumoto Machine Mfg. Co.

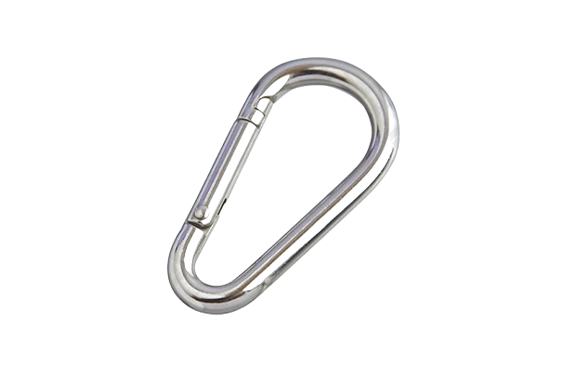

Mizumoto NK-A Series Eggplant-Shaped Carabiner, Without Ring

Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: NK-A Series
Features
- You can attach and remove the terminal hardware of the chain with one touch.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
| Item | Type | D (in) | L (in) | W (in) | S (in) | Weight (kg) | Consideration Weight (kgf) | Consideration Weight (kN) |
|---|---|---|---|---|---|---|---|---|
| KD-10A | Without Attachment | 10 | 113 | 60 | 22 | 156 | 200 | 1.96 |
| KD-10B | With Attachment | 10 | 113 | 60 | 18 | 161 | 235 | 2.30 |

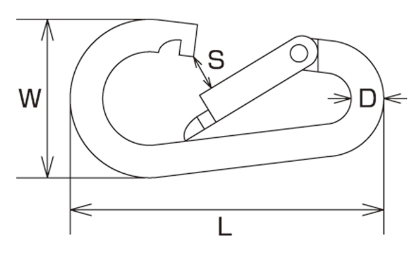

Dimensions (mm)
