Mizumoto Machine Mfg. Co.

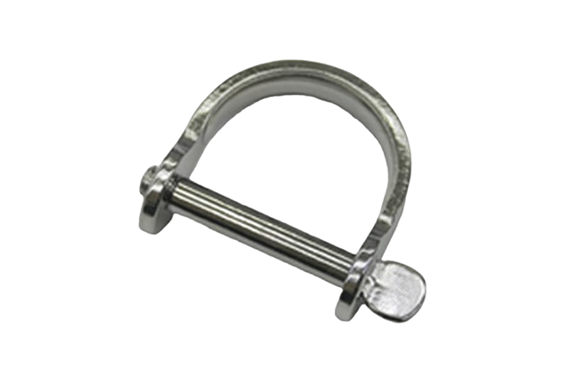

Mizumoto YSW Series Wide Plate Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: YSW Series
Features
- It is easier and wider than a screw shackle, so it is more versatile.
- It can be used as a connecting fitting for chains, wires, ropes, etc., and as a joint for terminal fittings.
Specifications
| Product Number | D | L | B | d | t | F | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| NEW YSW-4 | 4 | 19 | 20 | 10 | 1.5 | 5.2 | M-4 | 6 | 30 | 0.29 |
| NEW YSW-5 | 5 | 23 | 25 | 12 | 2 | 7 | M-5 | 13 | 50 | 0.49 |
| NEW YSW-6 | 6 | 27 | 30 | 15 | 3 | 8 | M-6 | 26 | 100 | 0.98 |
| NEW YSW-8 | 8 | 48 | 45 | 18 | 4 | 10 | M-8 | 70 | 135 | 1.32 |

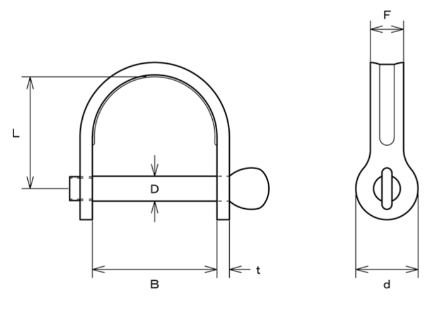

Dimensions (mm)
