Mizumoto Machine Mfg. Co.

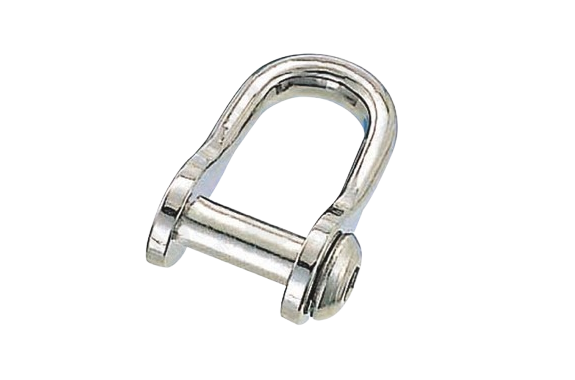

Mizumoto RC Series Sunken Semi-Circular Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: RC Series
Features
- The protrusion (plucking part) of the pin of the semi-round shackle is removed, so it does not get in the way.
- It is opened and closed using a hex wrench, so it is also a mischief prevention.
- Connecting chains, wires, ropes, etc., and joints with terminal fittings.
Specifications
| Product Number | D | L | B | d | t | F | Thread Size | Wrench Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| RC-5 | 5 | 21 | 12 | 12 | 2.5 | 5 | M-5 | 4 | 13 | 90 | 0.88 |
| RC-6 | 6 | 25 | 14 | 14 | 3 | 6.5 | Fine Thread M-6 | 4 | 21 | 120 | 1.18 |
| RC-8 | 8 | 33 | 17 | 17 | 4 | 7.5 | Fine Thread M-8 | 5 | 40 | 200 | 1.96 |

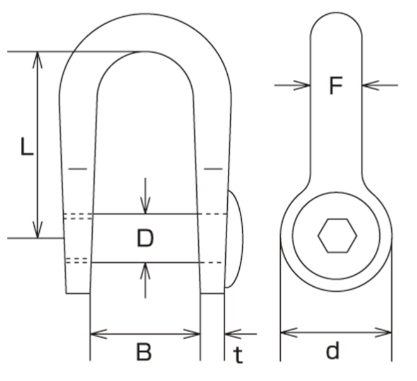

Dimensions (mm)
