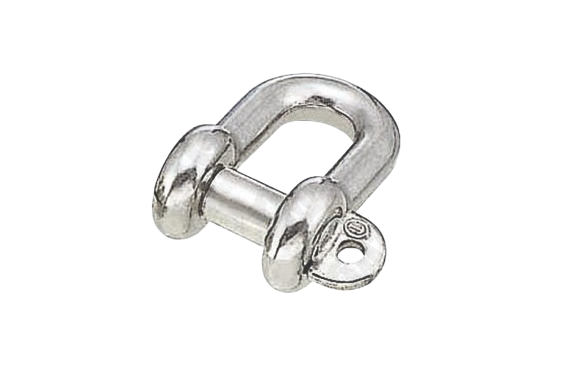

Mizumoto SC Series JIS Type Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SC Series
Features
- The thickness of the pin is thicker than the thickness of the frame.
- It is a screw-in type shackle. It is a JIS type.
- It is used as a connecting bracket such as a chain, wire, rope, etc., and as a joint for terminal fittings.
Specifications
| Product Number | D | L | B | d | t | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SC-6 | 8 | 24 | 11 | 17 | 6 | M-8 | 40 | 200 | 1.96 |
| SC-8 | 10 | 32 | 14 | 21 | 8 | M-10 | 73 | 350 | 3.43 |
| SC-10 | 12 | 40 | 17 | 25 | 10 | M-12 | 134 | 600 | 5.88 |
| SC-12 | 15 | 48 | 20 | 32 | 12 | M-14 | 250 | 900 | 8.82 |
| SC-14 | 17 | 56 | 24 | 36 | 14 | M-16 | 380 | 1200 | 11.76 |
| SC-16 | 19 | 64 | 26 | 40 | 16 | M-18 | 560 | 1500 | 14.70 |
| SC-18 | 21 | 72 | 29 | 45 | 18 | M-20 | 820 | 2000 | 19.60 |
| SC-20 | 24 | 80 | 31 | 50 | 20 | M-24 | 1100 | 2500 | 24.50 |
| SC-22 | 26 | 88 | 34 | 55 | 22 | M-24 | 1400 | 3000 | 29.40 |
| SC-24 | 30 | 96 | 39 | 62 | 24 | M-30 | 1870 | 3600 | 35.28 |

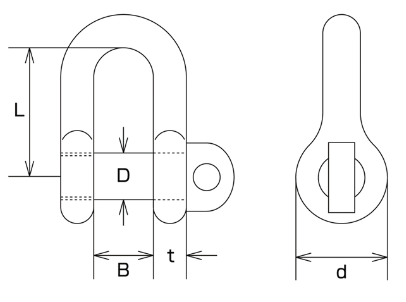

Dimensions (mm)
