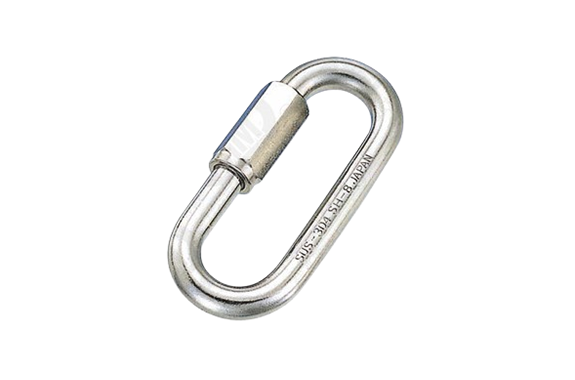

Mizumoto SH Series Ring Catch
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SH Series
Features
- It can be easily opened and closed by simply turning the nut.
- Attached to a terminal such as a chain, as a joint fitting.
Specifications
| Item | D | S | L | B1 | B2 | E | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| SH-2 | 2 | 3.5 | 21 | 8 | 7 | 2.2 | 2 | 8 | 0.08 |
| SH-2.5 | 2.5 | 4.5 | 25.5 | 9 | 8 | 2.7 | 4 | 15 | 0.15 |
| SH-3 | 3 | 5.5 | 29 | 10 | 8.5 | 3.3 | 6 | 30 | 0.29 |
| SH-4 | 4 | 6.5 | 34 | 11 | 9.5 | 4.4 | 11 | 50 | 0.49 |
| SH-5 | 5 | 8.5 | 42 | 13 | 11.5 | 5.4 | 20 | 80 | 0.78 |
| SH-6 | 6 | 9.5 | 49 | 15 | 13.5 | 6.5 | 32 | 150 | 1.47 |
| SH-8 | 8 | 10.5 | 62 | 17 | 15 | 8.5 | 72 | 350 | 3.43 |
| SH-9 | 9 | 11.5 | 67 | 20 | 18 | 9.5 | 101 | 500 | 4.9 |
| SH-10 | 10 | 13 | 76 | 22 | 20 | 10.5 | 139 | 700 | 6.86 |
| SH-11 | 11 | 14 | 85 | 24 | 22 | 11.6 | 179 | 800 | 7.84 |
| SH-13 | 13 | 16 | 96 | 27 | 25 | 14 | 283 | 1000 | 9.8 |
| SH-16 | 16 | 18 | 118 | 34 | 30.5 | 19.4 | 572 | 1500 | 14.7 |
| SH-19 | 19 | 23.5 | 142 | 41 | 38 | 21.5 | 880 | 2000 | 19.6 |

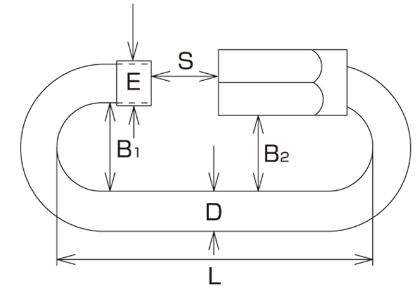

Dimensions (mm)
