Mizumoto Machine Mfg. Co.

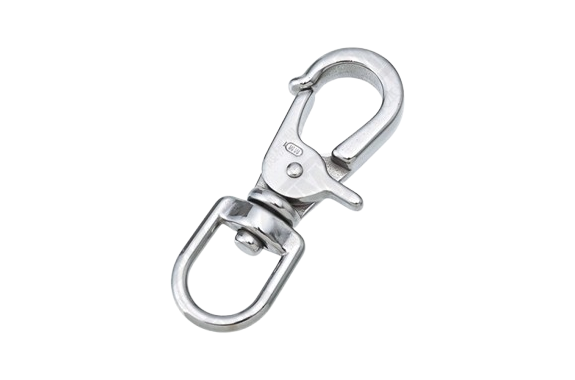

Mizumoto TF Series Trigger Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: TF Series
Features
- The eye part rotates, so it becomes a chain attachment.
- It is used to connect chains, wires, ropes, etc., and to joints of terminal fittings.
Specifications
| Product No. | D | L | W | S | R | H | d | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TF-1 | 3 | 63 | 21 | 6 | 3 | 11 | 11.5 | 6 | 25 | 20 | 0.20 |
| TF-2 | 5 | 91 | 31 | 10 | 5 | 19 | 19 | 10 | 81 | 50 | 0.49 |

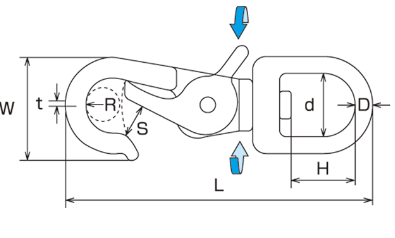

Dimensions (mm)
