Mizumoto Machine Mfg. Co.

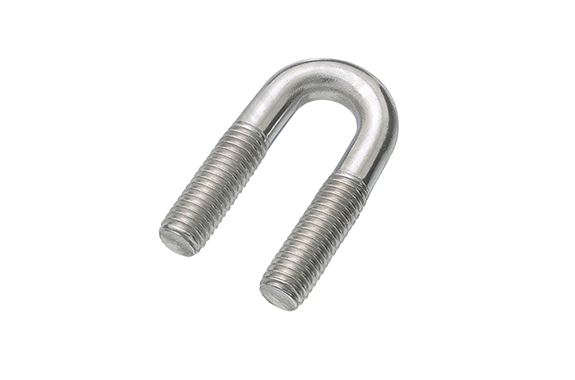

Mizumoto WC-U Series Bean U Bolt
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: WC-U Series
Features
- It is a small U-bolt.
- It is a fixing metal fitting to the wall, floor, and ground.
Specifications
| Item Number | D | L | T | W | Thread | Weight (g) | Reference Weight (kgf) | Reference Weight (kN) |
|---|---|---|---|---|---|---|---|---|
| WC-3U | 2.5 | 21 | 12 | 8.5 | M-3 | 2 | 15 | 0.15 |
| WC-4U | 3.5 | 23 | 12 | 10.5 | M-4 | 4 | 20 | 0.20 |
| WC-5U | 4.4 | 28 | 13 | 12 | M-5 | 7 | 30 | 0.29 |
| WC-6U | 5.3 | 34 | 17 | 14 | M-6 | 12 | 50 | 0.49 |
| WC-8U | 7.1 | 43 | 20 | 17.5 | M-8 | 27 | 80 | 0.78 |
| WC-9U | 9 | 53 | 27 | 21 | M-10 | 52 | 150 | 1.47 |

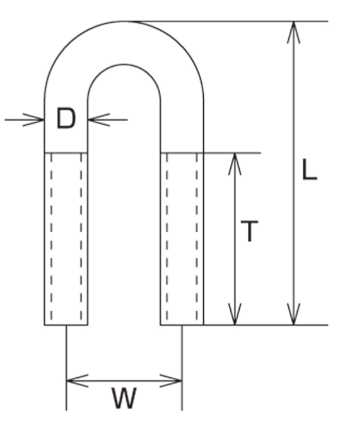

Dimensions (mm)
