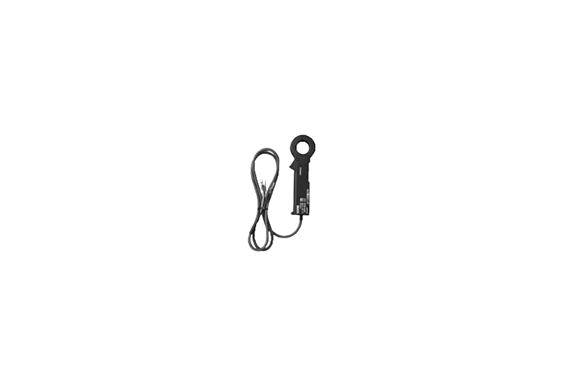

Multi ACT-50H Clamp-on AC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: ACT-50H
Features
Instrumentation output clamp CT Feeder measurement5V output
Specifications
| Applicable current | AC 1A～50A |
|---|---|
| Application frequency | 50/60Hz |
| Measurement method | Average Detection System |
| Wire diameter that can be installed | Max φ23mm |
| output | DC 5V F.S±2%（0A=1V、50A=5V） |
| Supply voltage | DC 24V |
| Input Resistance | 1MΩ or more |
| Withstand voltage | AC 2200V/1 min (between exterior case ~ output) |
| Insulation resistance | DC 500V/100MΩ or more (between exterior case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Output Leads | 3m 3 Core Cable |
| Dimensions and weight | W48×H146×D20mm Approx. 85g |
| option | AC Adapter MA-24 ¥5,000 |
