Multi Measuring Instruments Co.

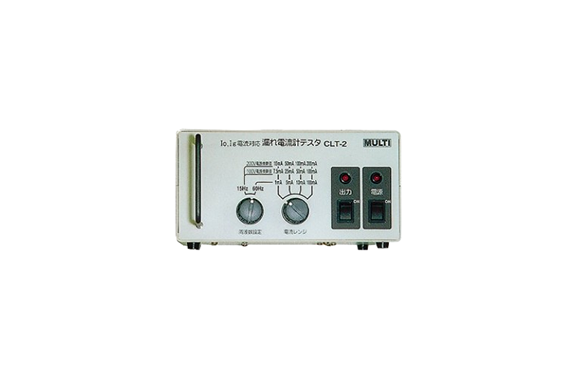

Multi CLT-2 High Accuracy Leakage Current Tester
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CLT-2
Features
・Standard current generator for calibrating MCL-400H/401H, etc.
・Io and Ig current can be tested with one unit
Specifications
| IO Current Output | 1mA/5mA/10mA/100mA (spot output) 50Hz or 60Hz Accuracy: ±0.2% Distortion rate: within 0.18% |
|---|---|
| Ig current output | 15mA/50mA/100mA/200mA (Spot Output) 3 types of 12.5Hz, 15Hz, and 20.3Hz Accuracy: ±0.5% Distortion rate: within 0.2% |
| Conversion rate (Ig current) | 12.5Hz（M）：15mA/22.5μA、50mA/75μA、100mA/150μA、200mA/300μA 12.5Hz（T）：15mA/52.5μA、50mA/175μA、100mA/350μA、200mA/700μA |
| Frequency accuracy | ±0.25% |
| Temperature coefficient | 50ppm/°C at 5~20°C/26~40°C± |
| Stability | ±0.03% / h |
| power | AC100V |
| Dimensions and Weight | W200×H100×D200mm Approx. 1.5kg |
| accessory | Power cord |
