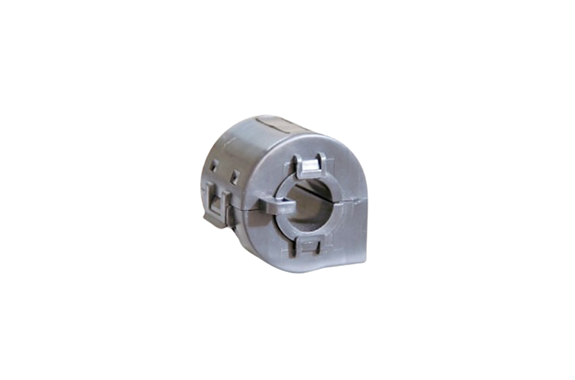

Multi CTF-13NF Split AC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-13NF
Features
Protruding part: about 1/2 of our ratio (the smallest in the 30A type) High-precision output (specific error 1%, phase difference 1°)
Can be compactly stored in the distribution board
Specifications
| Applicable current | AC0.1～100A(50/60Hz) |
|---|---|
| Maximum allowable current | AC150Armscontinuous |
| Nominal Current Ratio | 3000:1 |
| Application frequency | 10Hz～5KHz |
| Wire diameter that can be installed | Maximum φ13.8mm |
| accuracy | ±1.0%/Rated Current |
| Phase difference | 0.7°±0.5° (10Ω/100A/50・60Hz) |
| Open protection | 7.5V Clamping Element |
| Operating Circuit Voltage | AC600V or less |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Connector | S02B-PASK-2 (Daily Pressure) |
| Dimensions and weight | W44×H38×D29.5mm Approx. 75g |
