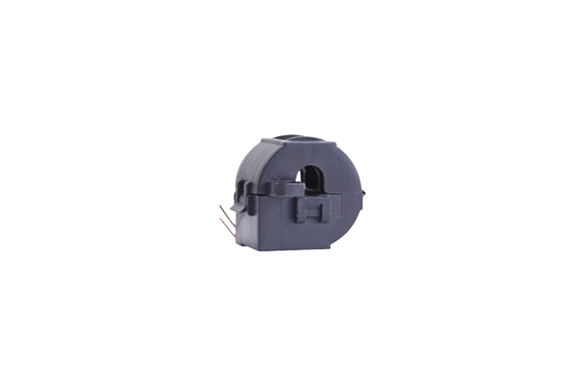

Multi CTF-7NF Split AC Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: CTF-600A
Features
Ideal for visualizing electricity in the home. For current measurement of distribution board branch circuits.
Specifications
| Applicable current | AC0.1～30A(50/60Hz) |
|---|---|
| Maximum allowable current | AC50Armscontinuous |
| Nominal Current Ratio | 3000:1 |
| Application frequency | 10Hz～5KHz |
| Wire diameter that can be installed | Maximum φ7mm |
| accuracy | ±1.0%/Rated Current |
| Phase difference | 2.5°±1.0° (10Ω/30A/50・60Hz) |
| Open protection | 7.5V Clamping Element |
| Operating Circuit Voltage | AC600V or less |
| Withstand voltage | AC2200V/1 minute (between outer case ~ output) |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Temperature and humidity | -10~60°C 80%RH or less (but not condensing) |
| Reference Standards | RoHS compliant |
| Output Leads | Approx. 20cm (AWG24 equivalent) |
| Dimensions and weight | W25.6×H26.8×D21.2mm approx. 20g |
