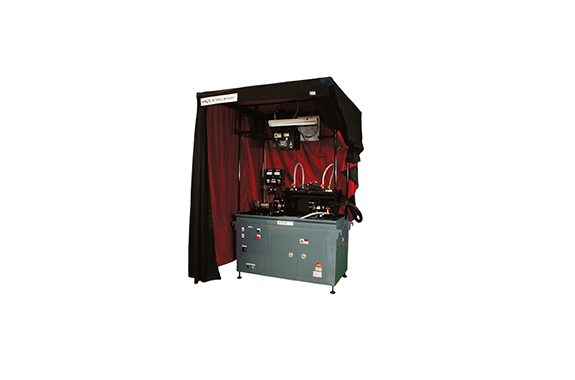

EMIC ER-26Y/ER-26YD Multiple Shift Magnetic Particle Detector
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Mode: ER-26Y/ER-26YD
Features
- This is a magnetic particle testing device that supports multiple alternating magnetization methods. It can perform flaw detection in both vertical and horizontal directions at the same time, which can improve work efficiency.
- The magnetization current values of the shaft and coil can be adjusted individually, so that the optimal current value according to the test object can be detected in a well-balanced manner.
- One cycle of crimping the test object, spraying magnetic powder liquid, conducting magnetization, and opening can be performed automatically, which improves workability and reduces the burden on workers.
- There are also stainless steel tanks, constant current control type and so on as options.
Specifications
| Model | ER-26Y | ER-26YD | |
| Power input (rated) | Single Phase AC 200V 50/60Hz 60A | Three-phase AC 200V 50/60Hz 60A | |
| Magnetization output | Shaft through side | DC 3,000A (single-phase half-wave rectifier high) | AC 3,000A (wave height) |
| Coil side | DC 2,500A (single-phase half-wave rectifier high value) | AC 2,500A (wave height) | |
| Current Regulation | SCR contactless stepless system | ||
| Power-up time | 0~2 seconds variable/2 seconds energization 30 seconds pause | ||
| Load Conditions | Crimp φ25mm×450mm copper rod between both electrodes Coil side: 75mm2 ×4 turns 2 coils | ||
| Demagnetization output | without | AC current attenuation method: 3,000A~0 (shaft pass) | |
| Magnetization cycle operation | Crimping of the test object, spraying of the test solution, magnetization, energization, and opening of the test object in one cycle automatic (8 seconds) | ||
| Electrode Moving side electrode | maximum opening 50~660mm manualsliding | ||
| Fixed side electrode | Crimping by air cylinder stroke 50mm | ||
| Contact surface and material | Shaft through side: φ78mm copper mesh (spiral type) coil side: effective inner diameter φ170mm | ||
| Body Dimensions (mm) | 1,300W×700D×830H | 1,600W×670D×830H | |
| Darkroom Unit Dimensions (mm) | 1,500W×1,500D×2,200H | 1,800W×1,500D×2,200H | |
| mass | Approx. 400kg | Approx. 500kg | |
