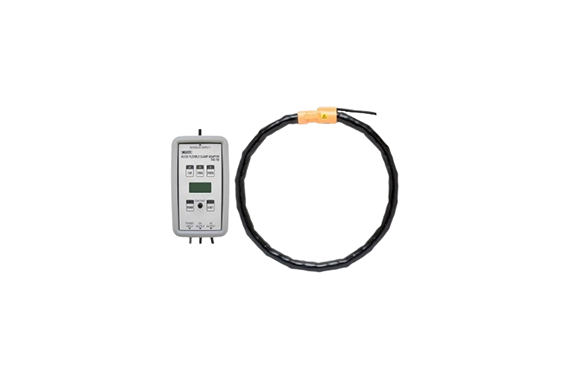

Multi FAD-100 AC/DC Flexible Current Probe
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: FAD-100
Features
・Measurement and recording for a long time by external power supply
・Simultaneous detection of AC current
and DC current ・Detection of small DC current in high AC current
・Flexible sensor with an inner diameter of 200mm
・Wide measurement range (up to AC/DC 1000A), Excellent usability that can be used even in places where it is difficult to clamp
・The alternating current adopts true effective value detection
Specifications
| Measuring range | AC Current 10A/100A/1000A DC Current 10A/100A/1000A |
|---|---|
| AC current accuracy | ±3.0％rdg±10dgt |
| DC current accuracy | ±3.0％rdg±10dgt |
| CT Inner Diameter | φ200mm |
| output | AC Current 1.5V AC (Full Scale for each range) DC Current 1.5V DC (Full Scale for each range) |
| Other features | Effective Value Measurement (RMS) |
| power | DC12V |
| Dimensions and Weight | Body: W76×H135×D35mm approx. 250g CT: Inner diameter φ200mm approx. 270g |
| accessory | Storage case |
