Multi Measuring Instruments Co.

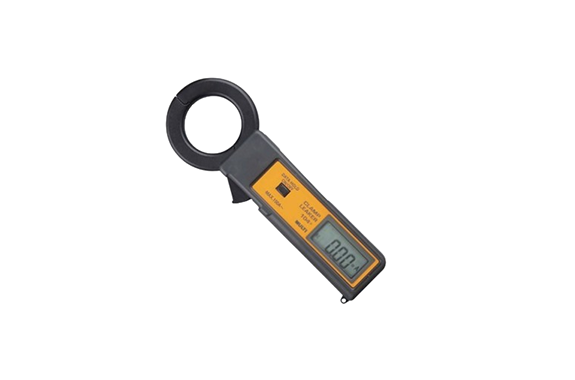

Multi M-104+ Mini Clamp Car
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-104+
Features
・AC 30/300 mA, 30/150 A 2-range manual
・CT inner diameter φ33 mm
・Minimum resolution 0.01 mA
・With auto power-off function
・With data hold function
*Not suitable for measuring leakage current with 2 or 3 wires at once
Specifications
| Measuring range | AC 30 mA/300 mA/30 A/150 A |
|---|---|
| AC current accuracy | ±2.0 ％rdg ±5 dgt |
| CT Inner Diameter | φ33 mm |
| Minimum resolution | 0.01 mA |
| Other features | Data Hold, Auto Power Off |
| power | Button Battery LR44×2 |
| Dimensions and Mass | W54×H152×D23 mm Approx. 85 g |
| accessory | Batteries, soft cases |
