Multi Measuring Instruments Co.

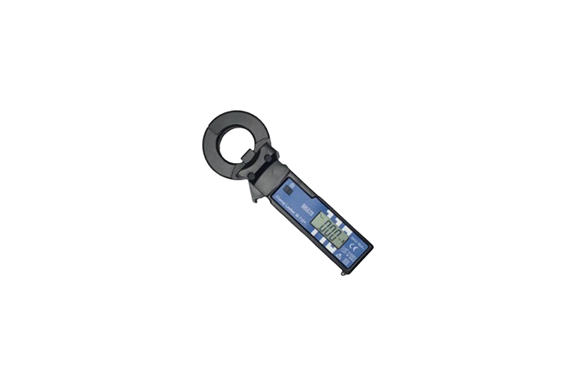

Multi M-110+ Mini Clamp Car
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-110+
Features
- Maximum measuring conductor diameter φ25mm
- Minimum resolution 0.001mA
- With auto power off function
- With data hold function
Specifications
| Measuring range | AC 2mA / 20mA / 200mA / 600mA / 6A / 60A (Auto Range Switching) |
|---|---|
| AC current accuracy | 2mA ~ 200mA range ±1.0%rdg ±5dgt600mA ~ 6A range ±1.5%rdg ±5dgt 60A range |
| Maximum measured conductor diameter | φ25mm |
| Minimum resolution | 0.001mA |
| frequency | 50Hz / 60Hz (Auto Detection) |
| Other features | Data hold, auto power off, battery low indication |
| power | Button Battery LR44×2 |
| Dimensions and weight | W58 × H170 × D23 mm Approx. 120g |
| accessory | Batteries, soft cases |
