Multi Measuring Instruments Co.

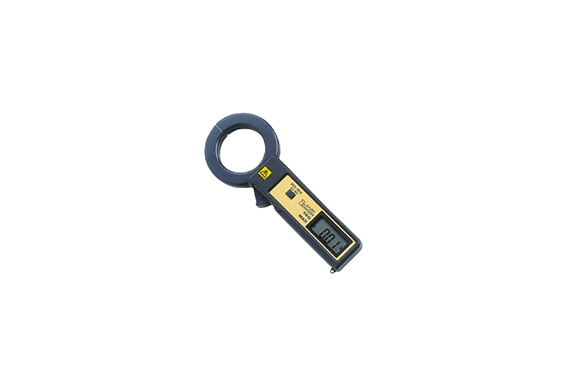

Multi M-140 Mini Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-140
Features
- High-precision mini-size leakage meter
- Nearly unaffected by external magnetic fields
- Auto power-off function
Specifications
| Measuring range | AC 30mA/300mA/30A/300A |
|---|---|
| AC current accuracy | 30mA/300mA range ±1.2%rdg±5dgt30A/300A range 0~200A ±1.2%rdg±5dgt 200~250A -3.0%rdg±5dgt 250~300A -5.0%rdg±5dgt |
| CT Inner Diameter | φ40mm |
| Minimum resolution | 0.01mA |
| Other features | Data Hold, Auto Power Off |
| power | Button Battery LR44×2 |
| Dimensions and Weight | W64×H162×D23mm approx. 125g |
| accessory | Batteries, soft cases |
