Multi Measuring Instruments Co.

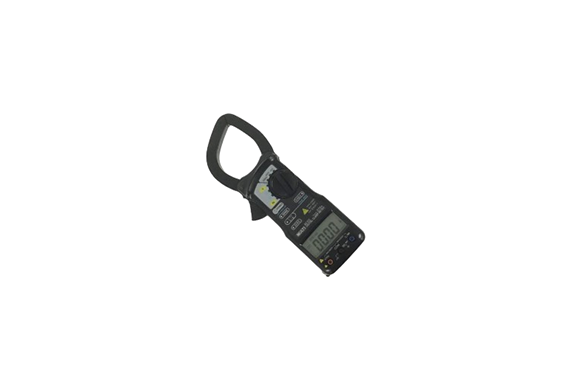

Multi M-270+ AC/DC Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-270+
Features
・True RMS AC/DC clamp meter with multifunction
・Low price IEC1010-1 CAT III. 600V compliant
・Frequency measurement function
・One-touch 0 tone
Specifications
| Measuring range | AC Current AC 40A / 400A / 2000A DC Current DC 40A / 400A / 2000A AC Voltage AC 400mV / 4V / 40V / 400V / 600V DC Voltage DC 400mV / 4V / 40V / 400V / 600V Resistance 400Ω / 4kΩ / 40kΩ / 400kΩ / 4000kΩ / 40MΩ Continuity check 400Ω (about 40Ω or less buzzer sound) Diode test 3V Frequency 100Hz / 1kHz / 10kHz / 10kHz / 100kHz / 1000kHz |
|---|---|
| AC current accuracy | 40A range ±2.0%rdg ±8dgt 400A/2000A range ±1.5%rdg ±8dgt |
| DC current accuracy | 40A range ±2.0%rdg ±8dgt 400A/2000A range ±1.5%rdg ±8dgt |
| CT Inner Diameter | φ55 mm |
| Minimum resolution | 0.01 A |
| Operating Circuit Voltage | Below 600 V |
| Safety Specifications | IEC1010-1 CAT III. 600V compliant |
| Other features | Data Hold, Auto Power Off, Battery Drain Indication, One-Push 0 Adjustment, Effective Value Measurement (RMS) |
| power | AA manganese battery × 3 |
| Dimensions and weight | Approx. W85 × H240 × D34 mm Approx. 400g (without battery) |
| accessory | Batteries, carrying cases, test leads |
