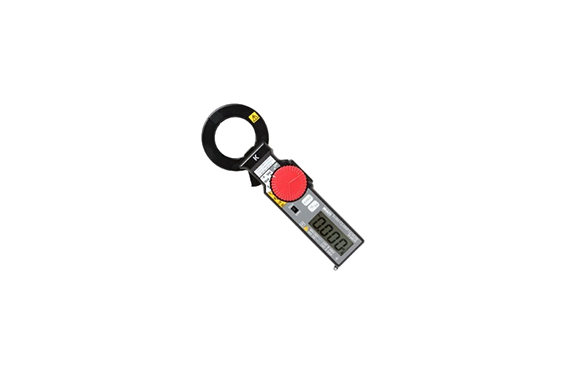

Multi M-340IR Mini Io/Ior Clamp Car
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: M-340
Features
- The first mini-type IOR measuring instrument with high accuracy.
- Minimum resolution of 0.001 mA.
- Measurement ranges:
- Ior: 0.001 mA to 100 mA
- Io: 0.001 mA to 1000 mA
- Compatible for use with various large-diameter leak adapters.
- Expanded application range with inner diameters from 40 mm to 80 mm and 128 mm.
Specifications
| Operating Circuit Voltage | AC 500V or less |
|---|---|
| CT Inner Diameter | φ40mm |
| power | 3 AA alkaline batteries × |
| Temperature and humidity | 0~50°C 80%RH or less (provided, non-condensing) |
| Dimensions and weight | W44×H200×D24mm Approx. 210g |
| Measurement Functions | Effective Leakage Current Ior Leakage Current IO |
| accessory | 1 voltage intake cord 1 instruction manual 1 mobile case |
| Auto Power Off | Approx. 10 minutes |
| Data Hold | [DH] mark is lit and display value is maintained |
| AC conversion method | Effective Value Conversion of Mean Rectification |
| Sample Rate | 2 times / sec |
| Input Voltage | Single-phase V-N to 3 phase R-T Voltage cord with fuse Red black 3m |
