Multi Measuring Instruments Co.

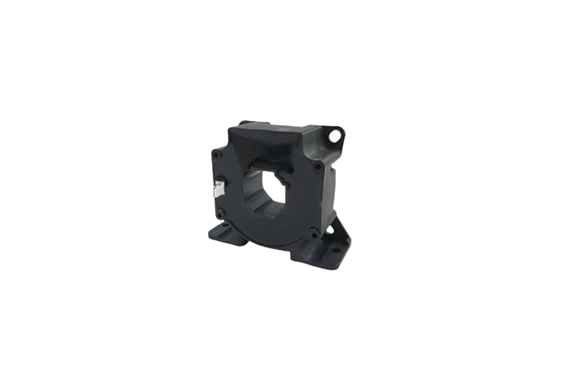

Multi MCHT-300B Closed-Loop
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCHT-300B
Features
●Hall effect measurement : for DC/AC/pulse current
●Application : UPS, SMPS, servo motor driver, static
DC driver, switching power supply, welding equipment power supply etc.
●Features : High precision, high current for industrial equipment, low temperature drift
Specifications
| Rated primary current | AC/DC 300 A |
|---|---|
| Applicable current | AC/DC 0 ～ ±450 A |
| Supply voltage | DC ±12 V ～ 20 V ±5 ％ |
| Rated secondary current | 150 mA |
| Current Change Ratio | 2000 : 1 |
| CT Inner Diameter | φ20.0 mm |
| accuracy | ±0.5 %（F.S） |
| Offset voltage | < ±10 mV |
| Residual noise | < 10 mV |
| Offset change with temperature | < ±5 mV |
| Operating temperature and humidity range | -40 ~ 70 °C, 75 %RH or less (provided that there is no condensation) |
| Storage temperature and humidity range | -40 ~ 70 °C, 75 %RH or less (provided that there is no condensation) |
| Reference Standards | EN50178, IEC61010-1, RoHS2 |
| Dimensions and weight | W54.0×H56.5×D26.0mm Approx. 95g |
| Output Connector | Molex AE-6410-03A |
