Multi Measuring Instruments Co.

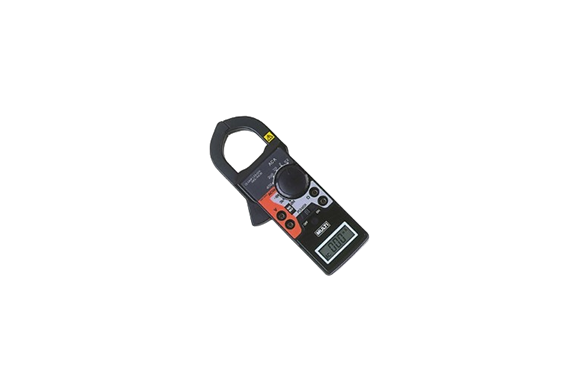

Multi MCL-400D Digital Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-400D
Features
Standard for digital clamp leakers
Maximum current 600 A (with conversion graph)
Specifications
| CT Inner Diameter | 40mm |
|---|---|
| power | 2 batteries UM-4 (AA) |
| Dimensions and weight | 69(W)×197(H)×32(D)mm 370g |
| Measuring range | AC Current: 0~0.2/2/20/200/400A (50/60Hz) Min Value: 0.1mA |
| AC Voltage: 0~600V | |
| Resistance: 2KΩ/2MΩ, | |
| Continuity check | |
| accessory | Hard Case, Test Lead |
| Tolerance | AC current (0.2/2/20/200A range): ±1.0%rdg±5dgt |
| AC Current (400A Range): ±1.0%rdg±3.0%FS | |
| AC Voltage & Resistance: ±1.0%rdg±5DGT |
