Multi Measuring Instruments Co.

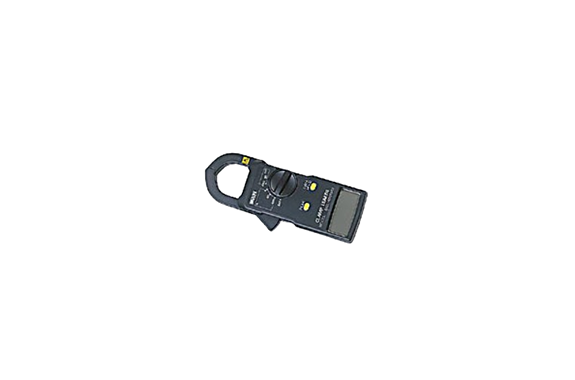

Multi MCL-400RMS Digital Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-400RMS
Features
True Effective Value (RMS) display ideal for current measurement in
inverters, air conditioners, etc.
Specifications
| CT window diameter | 40mm |
|---|---|
| power | 9V Alkaline Battery 6LR61 1 or AC Adapter (AC100V) |
| Dimensions and weight | 69(W)×207(H)×33(D)mm Approx. 450g |
| option | AC Adapter ¥4,200 |
| Measuring range | AC Current: 0~40mA/400mA/4A/40A/400A |
| accessory | Hard |
| Other features | Displays PEAK current during measurement |
| Tolerance | ±1% rdg±5 DGT 400A range only± 1% rdg± 2% FS |
| Minimum display value | 0.01mA |
