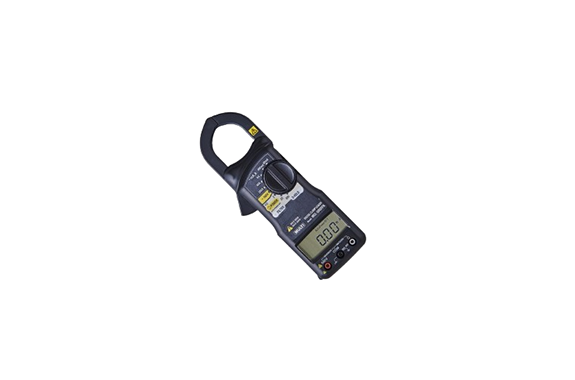

Multi MCL-500DFN Digital Clamp Leaker
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-500DFN
Features
・Accurately measures small currents that are not easily affected by external magnetic fields
・Always stable accuracy with CT that is not easily deteriorated
over time ・Filter switch that cuts high frequency
・Always stable accuracy with CT that is not easily deteriorated
over time ・Filter switch that cuts high frequency
Specifications
| Measuring range | Leakage Current: 40 mA/400 mA Load Current: 4 A/40 A/500 A AC Voltage: 500 V Resistance: 2 kΩ/20 kΩ/200 kΩ |
|---|---|
| CT Inner Diameter | φ40 mm |
| Minimum resolution | 0.01 mA |
| Filter switches | Cuts high frequency frequencies above approx. 150 Hz |
| Other features | Over Display, Battery Low Indicator, Auto Power Off, Data Hold |
| power | AA alkaline batteries×3 |
| Dimensions and Weight | W70×H223×D34 mm Approx. 440 g |
| accessory | Battery, test lead× 1, case × 1 |
