Multi Measuring Instruments Co.

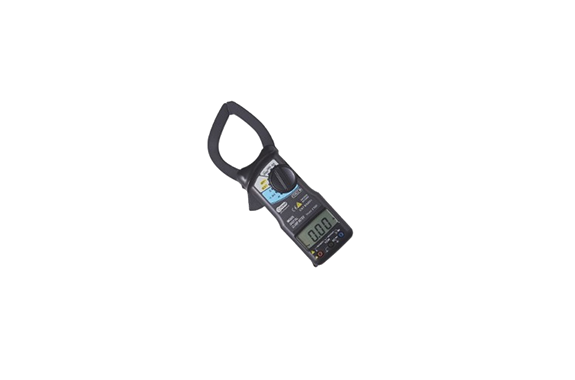

Multi MCL-550D Digital Clamp Meter
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-550D
Features
- Multifunctional digital clamp meter for measurements up to 1000 A
- Wide range measurement with a minimum resolution of 1 mA
Specifications
| Measuring range | AC Current 2000mA/200A/1000A AC Voltage 2V/20V/200V/600V DC Voltage 2V/20V/200V/600V Resistance 200Ω/2kΩ/20kΩ/200kΩ/2000kΩ/20MΩ Continuity Check Buzzer Sound Diode Test 2V |
|---|---|
| CT Inner Diameter | φ55mm |
| Minimum resolution | 1mA |
| frequency | Please specify 50Hz or 60Hz when ordering |
| Other features | Data Hold, Auto Power Off |
| power | AA 4 manganese batteries×2 |
| Dimensions and Weight | W85×H240×D34mm Approx. 350g |
| accessory | Batteries, test leads, and carrying cases |
