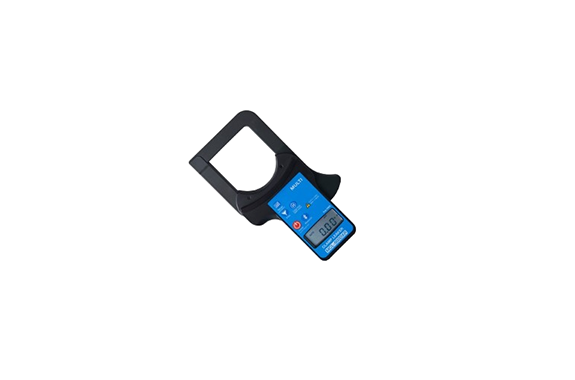

Multi MCL-800DXR Large Diameter Clamp Leaker with Built-in Bluetooth
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCL-800DXR
Features
・It can be connected to a smartphone or tablet via Bluetooth to display waveforms and store data.
・Measurement data can be stored on the server, and past data can be checked and trend graphs can be displayed
・Large diameter of CT inner diameter of 74×80mm can measure up to 1000A
・Leakage current support, High-precision measurement with a minimum resolution of 0.01mA
・Filter function to cut high frequency frequencies of about 150Hz
or more ・MAX hold function to hold the maximum value of the displayed
value ・Auto-range switching to select the optimal range according to the measured value
・Large, easy-to-read display
・Effective value detection (RMS)
Specifications
| Measuring range | AC20mA/200mA/2A/20A/200A/1000A/Auto RMS |
|---|---|
| AC current accuracy | ±2.0％rdg±5dgt |
| CT Inner Diameter | 74×80mm |
| Minimum resolution | 0.01mA |
| Filter switches | Cuts high-frequency frequencies of about 150Hz or more |
| MAX Hold | Keep the maximum value displayed |
| communication | Bluetooth 4.2 Range: Up to 10m (Indoor Line of Sight) |
| Other features | Over Display, Battery Low Indicator, Auto Power Off, Data Hold |
| power | AA alkaline battery×3 |
| Dimensions and Mass | W138×H237×D46mm approx. 650g |
| accessory | Batteries, carrying cases |
