Multi Measuring Instruments Co.

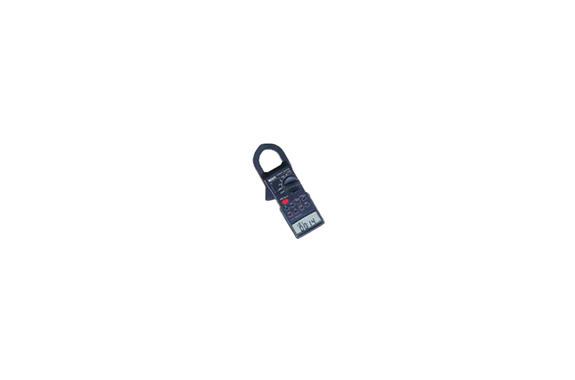

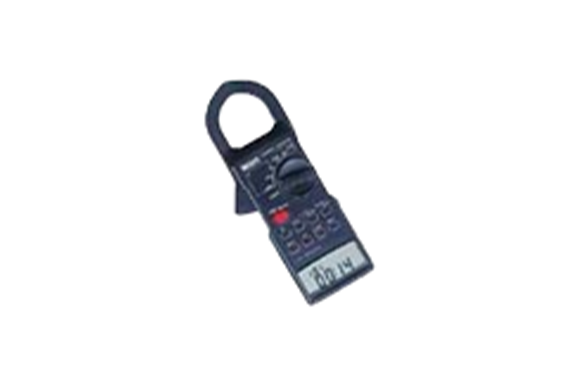

Multi MCM-500 Clamp Current Monitor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: MCM-500
Features
The basic functions of the MCM400 are equipped with a short-term peak hold, and it is possible to measure the operating current of ELB and other functions.
Specifications
| option | AC Adapter ¥4,200 Integrated Storage Case ¥12,600 Leak Adapter LAD-800 ¥30,450 |
|---|---|
| Measuring range | Leakage Current/Line Current: 0~50mA/500mA/5A/50A/500A |
| Other features | 13 Storing data in memory |
| Sample Rate | 20 times/sec |
| precision | ±1％rdg±5dgt |
| CT window diameter | 40mm |
| output | Printer output |
| Dimensions and weight | 68(W)×207(H)×33(D)mm 430g |
