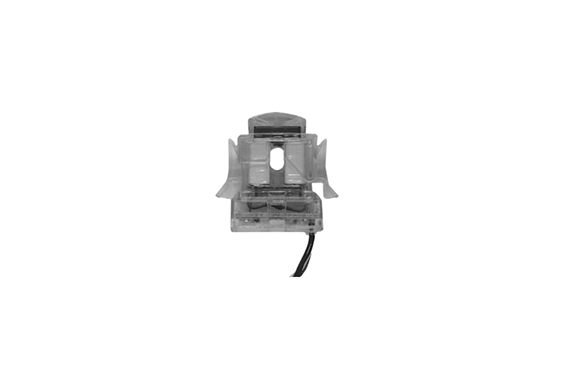

Multi OKM-03 Pulse Detection Current Sensor
Manufacturer: Multi Measuring Instruments Co., Ltd.
Model: OKM-03
Features
Detection of current pulses
Specifications
| Applicable current | 0.3mA～1A |
|---|---|
| Operating current value | 0.3mA |
| output | Open collector output (L (OFF) level when detected) |
| Wire diameter that can be installed | φ3mm |
| Pulse width | 10 msec or more |
| Supply voltage | DC5V±5% |
| Temperature and humidity | -10~60°C 80%RH or less However, no condensation |
| Insulation resistance | DC500V/100MΩ or more (between outer case ~ output) |
| Output Leads | 15cm (Red: +5V, White: Output, Black: COM) |
| Dimensions and weight | W28×H27×D18mm Approx. 16g |
